SLV W 2 KA 030 56 G

Headers, Male Pins Overview

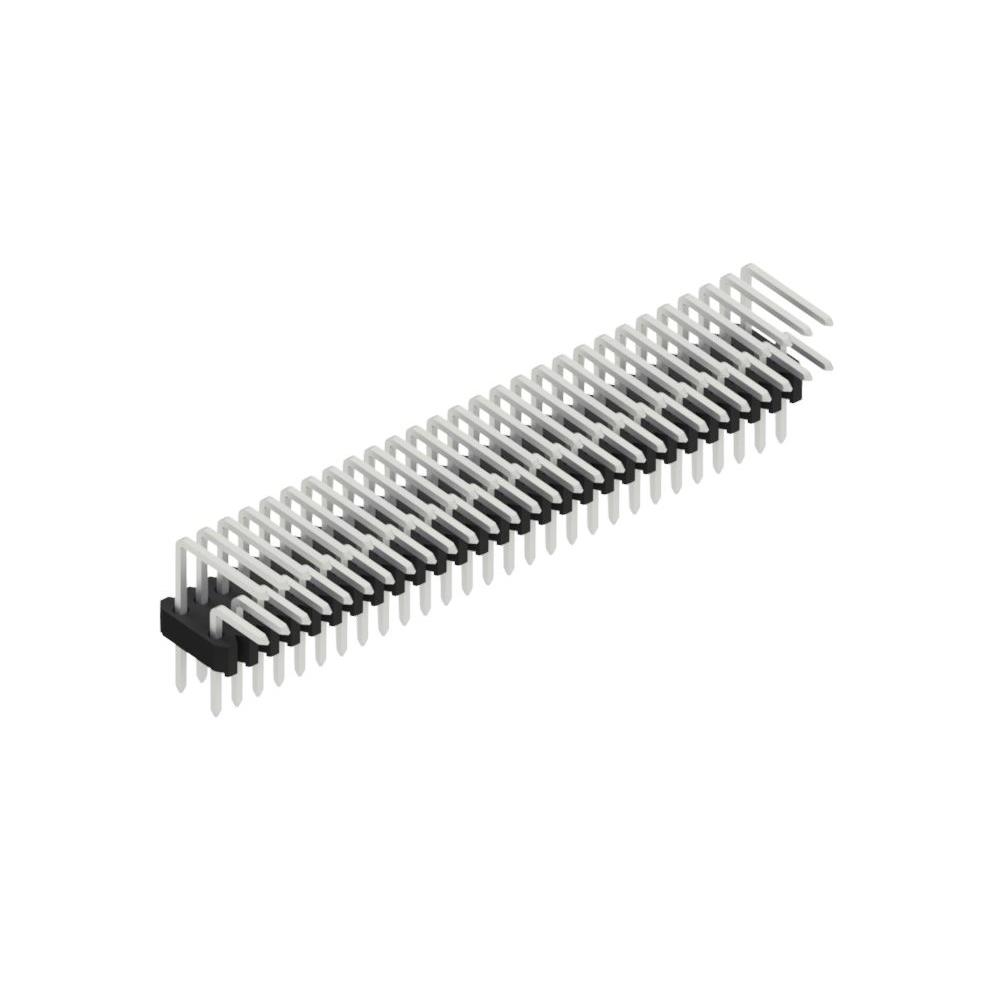

The SLV W 2 KA 030 56 G is a male pin header connector manufactured by Fischer Elektronik. It features a through-hole mounting style with two rows and 56 positions. The contact pitch is 1.27 mm (0.050 inches). The insulating body is constructed from PA 4.6 GF material. This component is designed for board-to-board or wire-to-board interconnections in electronic assemblies.

Headers, Male Pins Feature Summary

• Two-row male header configuration for high-density connections
• Through-hole mounting for secure PCB attachment
• Insulating body made of PA 4.6 GF for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Electronic assembly stacking

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm plating thickness and material composition, as variations exist within the SLV W 2 KA 030 series. Ensure the 56-position variant matches the required row count and pitch specifications for the target PCB layout. Cross-reference the datasheet for the exact part number to avoid confusion with similar models like the 56 Z variant.

Headers, Male Pins Selection Notes

Select this component when a 1.27 mm pitch two-row header is required for through-hole applications. Confirm that the nominal current and voltage ratings meet the circuit requirements. Verify compatibility with mating female headers, such as the BLM series, to ensure proper mechanical and electrical engagement.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SLV W 2 KA 030 series of male headers. The series offers various contact counts and pitch options. The SLV W 2 KA 030 designation indicates a specific pitch and row configuration suitable for general-purpose electronic interconnections.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the same Fischer Elektronik series with identical pitch and row count. Verify that any alternative part number maintains the same mounting style and insulating material properties to ensure mechanical fit.
