SLV W 2 SMD 073 28 Z

Headers, Male Pins Overview

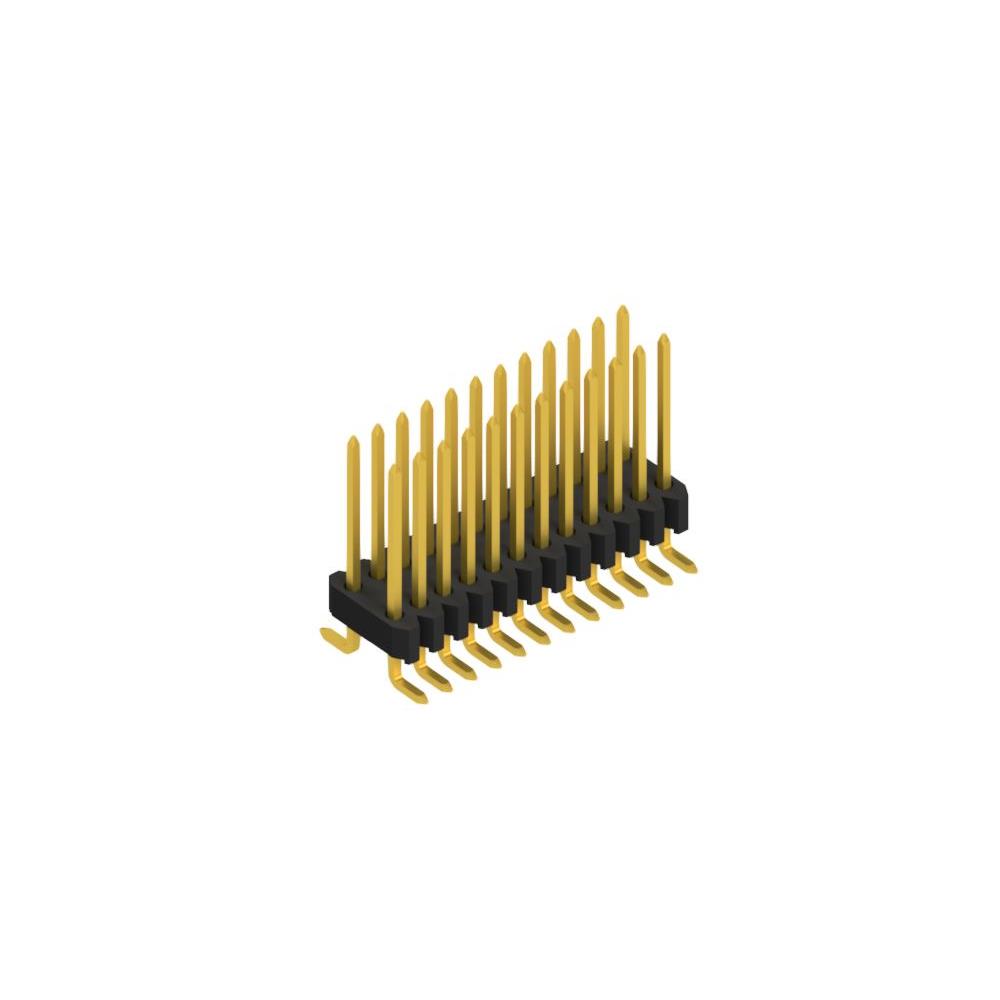

The SLV W 2 SMD 073 28 Z is a surface mount pin header manufactured by Fischer Elektronik. It features a 1.27 mm pitch and a two-row configuration with 28 contacts. The connector is designed for board-to-board or wire-to-board applications. Operating temperature range is -40°C to 163°C. Contact material is copper zinc, and insulation material is polyamide (PA46), also known as Nylon 4/6, glass filled.

Headers, Male Pins Feature Summary

• Surface mount design compatible with pick-and-place assembly processes
• Two-row layout providing high density connection capability
• Constructed with polyamide insulation for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm plating specifications and availability status. Ensure compatibility with automated surface mount equipment requirements. Confirm that the copper zinc contact material meets the electrical performance needs of the target application environment.

Headers, Male Pins Selection Notes

Select this component when a 1.27 mm pitch surface mount header with 28 positions in a dual row is required. Consider the operating temperature range of -40°C to 163°C for environmental suitability. Evaluate the polyamide insulation properties against mechanical stress requirements in the final assembly.

Headers, Male Pins Part Context

This part belongs to the SLV W 2 SMD series from Fischer Elektronik, which includes various position counts such as 12, 16, 46, 68, and 70 positions. The series maintains consistent 1.27 mm pitch and surface mount characteristics across different pole counts, allowing for scalable design options within the same family.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Similar parts in the series include SLV W 2 SMD 073 16 G and SLV W 2 SMD 073 46 G, differing only in contact count. Verify pinout and mechanical dimensions before substitution.
