SLV W 22 105 50 G

Headers, Male Pins Overview

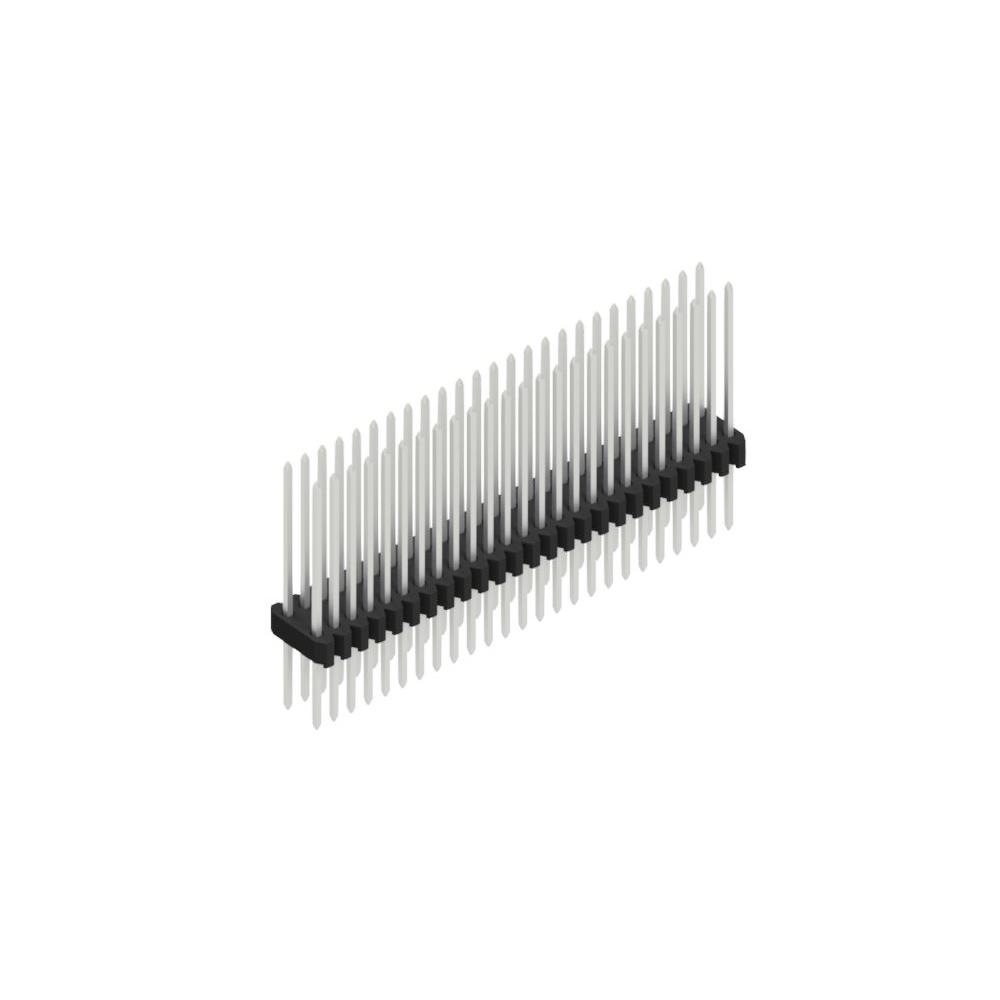

The SLV W 22 105 50 G is a male pin header manufactured by Fischer Elektronik. It features a 2-row configuration with 50 contacts and a 1.27 mm (0.050 inch) pin pitch. The connector utilizes a 2.54 mm row spacing for board-to-board or wire-to-board applications. Designed for through-hole mounting, it supports a voltage rating of 125 VAC and a current rating of 1.5 A. The unit is supplied in bulk packaging.

Headers, Male Pins Feature Summary

• Dual-row male pin header design for reliable electrical interconnection
• Precision 1.27 mm pin pitch ensuring accurate alignment
• Through-hole straight mount construction for PCB integration

Headers, Male Pins Applications

• Board-to-board connectivity systems
• Wire-to-board assembly interfaces
• Electronic control module connections

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the '50' designation in the model number to ensure correct pin quantity. Confirm that the 1.27 mm pitch and 2.54 mm row spacing align with the target PCB footprint requirements. Ensure the through-hole straight orientation is compatible with the assembly process and spatial constraints of the final electronic enclosure.

Headers, Male Pins Selection Notes

Select this component when a 50-position dual-row interface is required. The 1.27 mm pitch offers high density while maintaining standard spacing. Verify compatibility with mating female headers, such as the BLM series, to ensure proper mechanical fit and electrical continuity within the system architecture.

Headers, Male Pins Part Context

This part belongs to the SLV W 22 series of pin headers from Fischer Elektronik. The series provides standardized male connectors for various contact counts. The specific model denotes a 50-contact variant within this family, sharing common dimensional and electrical characteristics with other lengths in the same series.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 1.27 mm pitch, 2-row layout, and 50 positions. Ensure any replacement maintains the same 125 VAC rating and 1.5 A current capacity. Verify that the physical dimensions and mounting style are interchangeable with the original design.
