SLV W 3 SMD 048 31 G SM

Headers, Male Pins Overview

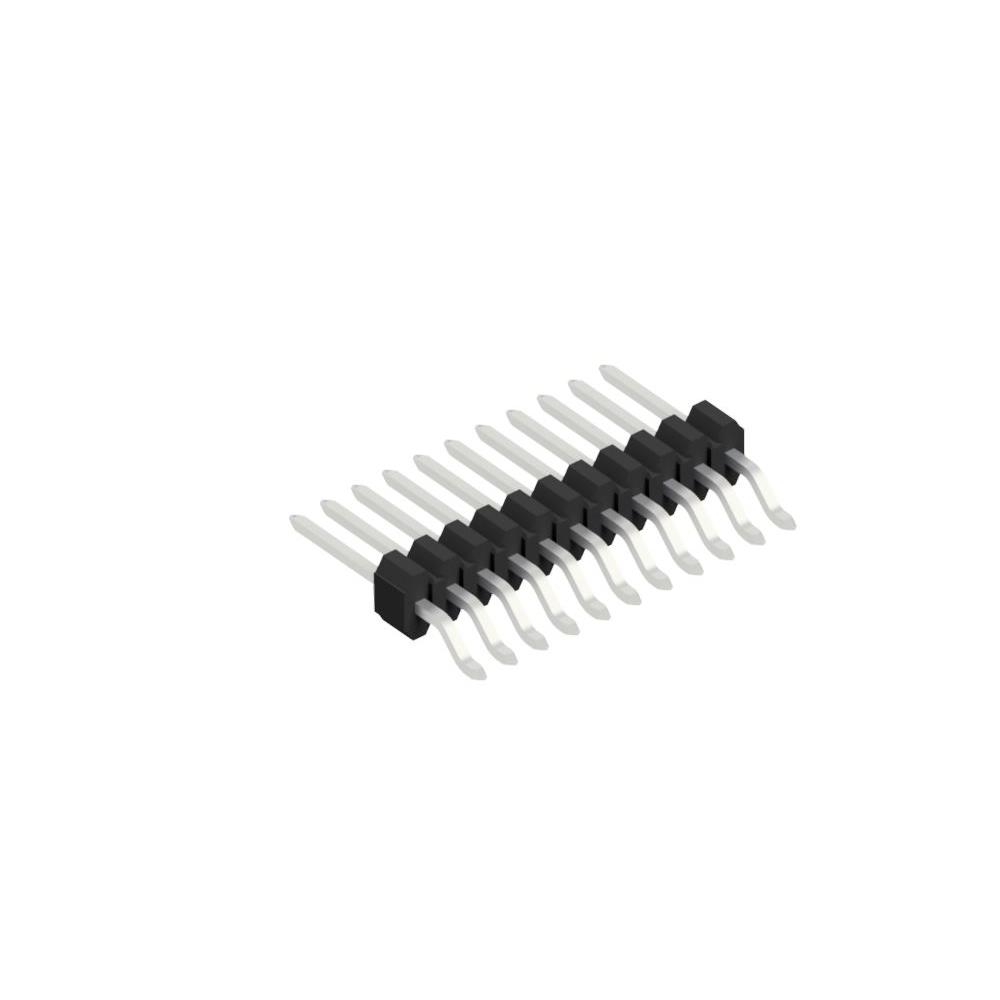

The SLV W 3 SMD 048 31 G SM is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 31 contacts and a 1.27 mm pitch. Designed for surface mount technology (SMT), the component supports a current rating of 1.5 A. The mating contact length measures 0.189 inches (4.80 mm), while the post length is 0.118 inches (3.00 mm). The operating temperature range spans from -40°C to +163°C, with soldering tolerance at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Push-pull fastening mechanism ensures secure board-to-board or wire-to-board connections.
• Surface mount termination facilitates automated pick-and-place assembly processes.
• Gold-plated contacts provide reliable electrical conductivity and corrosion resistance.

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board assemblies
• High-density electronic circuit integration

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the packaging format, such as bar magazine or tape and reel options. Ensure the selected variant matches the required contact count and plating specifications. Cross-reference the datasheet technical drawings against PCB footprint requirements to guarantee mechanical compatibility during procurement.

Headers, Male Pins Selection Notes

Select this connector based on the requirement for a 1.27 mm pitch single-row header with 31 positions. Confirm that the application environment falls within the specified temperature limits. Evaluate the need for surface mount compatibility and verify that the 1.5 A current rating meets the circuit design constraints before finalizing the component choice.

Headers, Male Pins Part Context

This component belongs to the SLV W 3 SMD series of pin headers from Fischer Elektronik. The series offers various contact counts and configurations tailored for high-precision electronic assemblies. The specific model denotes a 31-position variant optimized for surface mounting applications requiring robust connectivity.

Headers, Male Pins Replacement Considerations

Compatible substitutes include models from the same series with adjusted contact counts, such as SLV W 3 SMD 048 19 Z SM. Verify dimensional compatibility and electrical ratings when considering alternative part numbers for replacement purposes.
