SLV W 3 SMD 073 29 G

Headers, Male Pins Overview

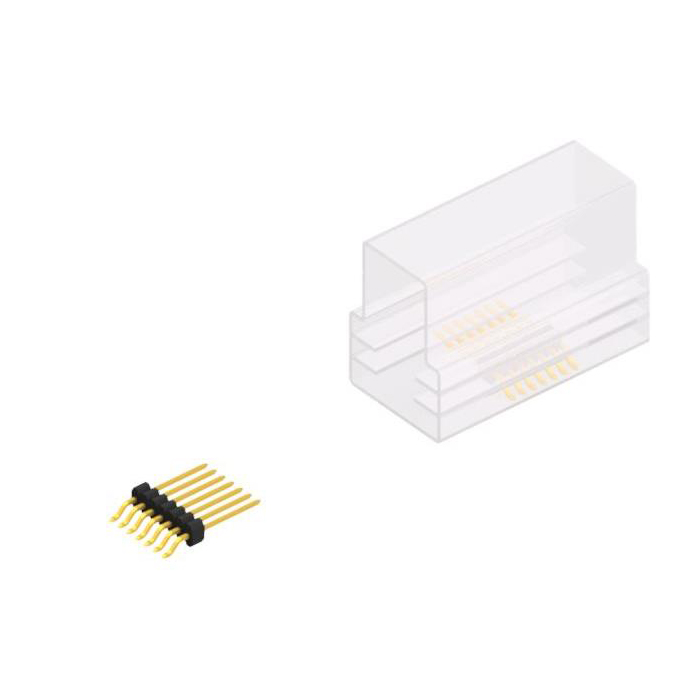

The SLV W 3 SMD 073 29 G is a surface mount connector header from the Fischer Elektronik SLV W 3 SMD 073 series. It features a single row with 29 positions and a 1.27 mm (0.050 inch) pitch. The unit utilizes brass contacts with gold plating for reliable signal transmission. Termination is achieved via soldering to the PCB, while the fastening mechanism employs a push-pull system. Mating contact length measures 7.30 mm, and post contact length is 3.00 mm.

Headers, Male Pins Feature Summary

• Surface mount design for automated assembly processes
• Push-pull fastening type for secure board-to-board connection
• Single row configuration with expanded insulator structure

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-density electronic assemblies requiring surface mount technology

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and pitch specifications. Confirm that the push-pull fastening mechanism aligns with the mechanical constraints of the target enclosure. Ensure compatibility with standard reflow soldering profiles for surface mount components. Check for any specific handling requirements related to the gold-plated contacts during storage and installation.

Headers, Male Pins Selection Notes

Select this component when a high-density single-row header is required for surface mount applications. The 1.27 mm pitch allows for compact circuit board layouts. Consider the push-pull feature if manual insertion or removal frequency is anticipated. Verify that the 29-position count meets the exact I/O requirements of the design without necessitating multiple connectors.

Headers, Male Pins Part Context

This component belongs to the SLV W 3 SMD 073 series by Fischer Elektronik, designed for robust electronic interconnects. The series offers various position counts within the same form factor. The 'G' suffix typically denotes gold plating on the contacts, ensuring corrosion resistance and low contact resistance in demanding environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other models within the SLV W 3 SMD 073 series with matching pitch and termination types. Variants such as SLV W 3 SMD 073 23 G SM share similar structural characteristics but differ in contact count. Ensure any replacement maintains the push-pull fastening mechanism and surface mount footprint.
