SLV W 4 080 60 G

Headers, Male Pins Overview

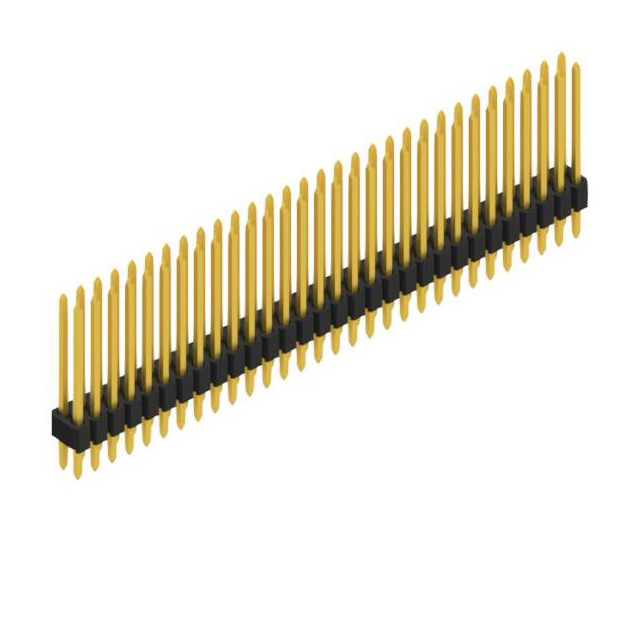

The SLV W 4 080 60 G is a male header connector manufactured by Fischer Elektronik. It features a through-hole mounting style with two rows and 60 positions. The contact pitch is 1.27 x 1.27 mm (0.050 inches). Contact material is copper zinc alloy, with gold plating on the posts. Insulation is made of glass-filled polyamide (PA46). Operating temperature range is -40°C to +163°C.

Headers, Male Pins Feature Summary

• Two-row male pin configuration for high-density connectivity
• Gold-plated contacts ensure reliable signal transmission
• Glass-filled polyamide insulation provides thermal stability

Headers, Male Pins Applications

• Industrial electronic manufacturing
• PCB interconnect systems
• Precision engineering applications

Headers, Male Pins Procurement Notes

Verify part number accuracy against official Fischer Elektronik documentation. Confirm that the 'G' suffix denotes gold plating as specified in datasheets. Ensure compatibility with mating female headers such as the BLM series. Check technical drawings for dimensional requirements including A: 12.2 mm, B: 2.5 mm, C: 8 mm. Validate operating temperature range suitability for your application environment.

Headers, Male Pins Selection Notes

Select this component when a 60-position two-row male header is required. Consider the 1.27 mm grid spacing for standard PCB layouts. Verify that the copper zinc contact material meets mechanical strength needs. Ensure the PA46 insulation rating aligns with thermal constraints. Confirm through-hole mounting fits the assembly process.

Headers, Male Pins Part Context

This part belongs to Fischer Elektronik's SLV W series of PCB connectors. The series includes various configurations with different contact counts and pitches. Similar models include SLV W 4 080 20 G and SLV W 4 080 60 Z, which differ in contact count or plating. The product line focuses on reliable industrial-grade interconnect solutions.

Headers, Male Pins Replacement Considerations

SLV W 4 080 60 Z is a confirmed substitute with identical dimensions but tin plating instead of gold. Ensure plating requirements match application needs before substitution.
