SLV W 4 080 8 G

Headers, Male Pins Overview

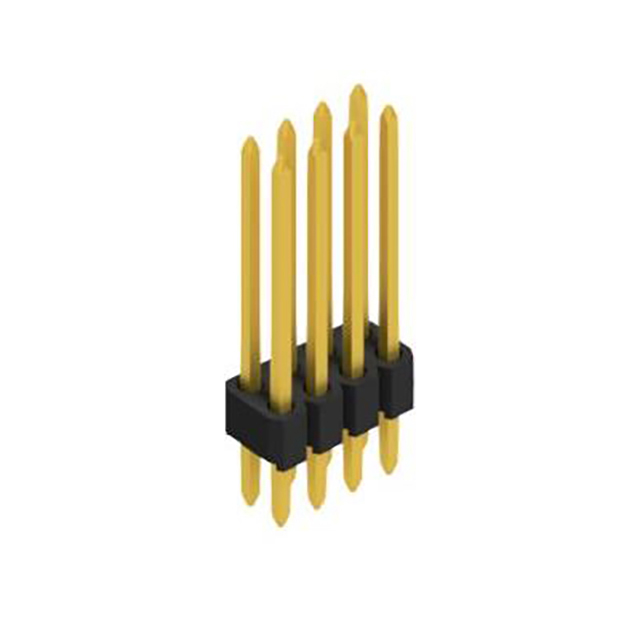

The SLV W 4 080 8 G is a male pin header connector from the Fischer Elektronik SLV W 4 series. It features an 8-position, 2-row configuration with a 1.27 mm pitch and 2.00 mm row spacing. Designed for through-hole mounting, it utilizes PA 4.6 GF insulating body material. The component supports a nominal current of 1.5 A and a nominal voltage of 125 V AC, with a test voltage of 300 V. Volume resistance is specified at ≤5 mΩ. Operating temperature ranges from -40°C to +163°C, with soldering tolerance of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Dual-row male pin header design for reliable PCB connectivity
• Through-hole mounting technology for secure mechanical attachment
• High-temperature resistant PA 4.6 GF insulating body

Headers, Male Pins Applications

• Industrial electronic equipment interconnects
• Control panel wiring harnesses
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's official datasheet to confirm plating specifications and material composition. Ensure the selected variant matches the required 8-position count and 1.27 mm pitch dimensions for proper board layout compatibility. Cross-reference technical drawings for precise housing height and contact length requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a compact 2-row male header is required for high-density PCB layouts. The 1.27 mm pitch allows for significant pin counts within limited board areas. Consider the thermal stability of the PA 4.6 GF material if the application involves elevated operating temperatures or reflow soldering processes exceeding standard limits. Verify current carrying capacity against circuit load requirements.

Headers, Male Pins Part Context

This part belongs to the SLV W 4 series of male pin headers manufactured by Fischer Elektronik. The series offers various pole counts and configurations optimized for industrial and commercial applications. Similar parts in the lineup include the SLV W 4 080 4 G and SLV W 4 080 52 G, differing primarily in position count and specific plating options while maintaining consistent pitch and mounting characteristics.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, 8-position count, and 2-row layout. Compatible alternatives include other manufacturers' 0.050 inch pitch male headers with identical mechanical dimensions. Verify that any replacement maintains the same through-hole termination style and thermal resistance capabilities.
