SLV W 4 130 68 Z

Headers, Male Pins Overview

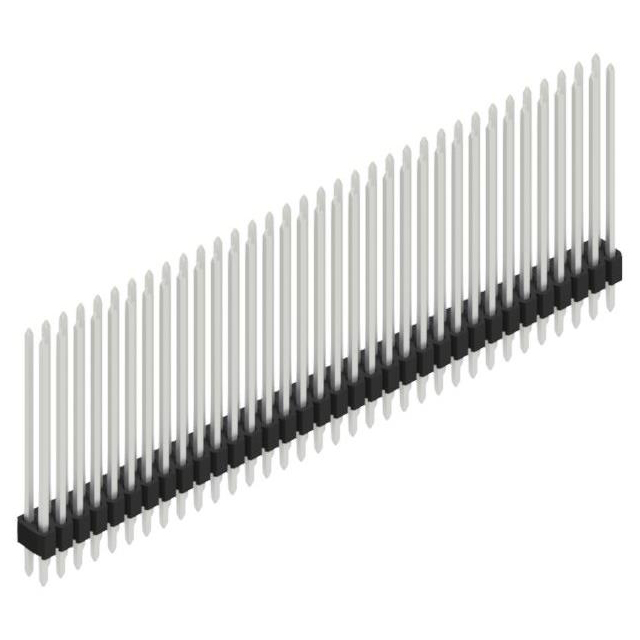

The SLV W 4 130 68 Z is a male pin header connector manufactured by Fischer Elektronik. It features a through-hole mounting style with a 2-row configuration and 68 positions. The contact pitch is 1.27 mm (0.050 inches), and the row spacing is 2.54 mm. The connector is designed for board-to-board or wire-to-board applications, providing reliable electrical interconnection in electronic assemblies.

Headers, Male Pins Feature Summary

• Through-hole mounting technology for secure PCB attachment
• Dual-row layout with 68 contacts for high-density connections
• Standard 1.27 mm pitch ensuring compatibility with common PCB footprints

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly integration
• General electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'Z' corresponds to the required plating specification and termination type as defined in the official Fischer Elektronik datasheet. Confirm mechanical dimensions match the target PCB layout. Ensure compliance with relevant environmental standards such as RoHS before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 2-row, 68-position header with 1.27 mm pitch is required. Consider the through-hole mounting constraint and the specific row spacing of 2.54 mm. Evaluate the operating temperature range and soldering thermal profile requirements against the datasheet specifications to ensure reliability during assembly.

Headers, Male Pins Part Context

This part belongs to the SLV W 4 series of pin headers from Fischer Elektronik. The series offers various pole counts and configurations. The SLV W 4 130 68 Z specifically denotes the 68-position variant within this standardized family of connectors designed for robust electronic interconnections.

Headers, Male Pins Replacement Considerations

Consult the official Fischer Elektronik documentation for confirmed substitute part numbers. Verify that any alternative maintains identical pitch, row count, and mounting style to ensure mechanical and electrical compatibility without redesigning the PCB footprint.
