SLV6A-FKB-CKNPRGJBB7A363

LED Indication - Discrete Overview

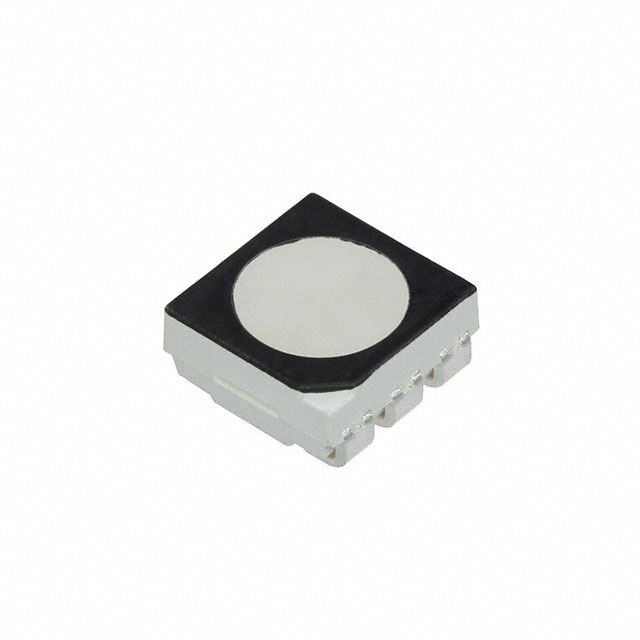

The SLV6A-FKB-CKNPRGJBB7A363 is a multi-color RGB surface-mount LED manufactured by Cree LED. It utilizes a PLCC-6 package with dimensions of 5.5 mm in length, 5.3 mm in width, and 2.6 mm in maximum height. The component features a round flat lens with a diameter of 4.20 mm. Electrical characteristics include a forward current of 20 mA for all channels. Forward voltages are specified at 2 V for red, and 3.2 V for both green and blue. Optical performance metrics list luminous intensities of 915 mcd for red, 1820 mcd for green, and 458 mcd for blue. Peak wavelengths are 622 nm for red, 530 nm for green, and 470 nm for blue. The device operates within a temperature range of -40°C to +100°C.

LED Indication - Discrete Feature Summary

• Integrates three distinct semiconductor chips for red, green, and blue light emission within a single compact surface-mount package.
• Features a colorless round flat lens design that provides optical clarity while maintaining a low-profile physical footprint.
• Supports independent control of individual color channels to enable full-spectrum color mixing and dynamic visual output.

LED Indication - Discrete Applications

• Large-format high-resolution video screens
• Digital advertising signage
• Stadium display ribbons

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest documentation to confirm exact wavelength and binning specifications. Confirm availability status as distribution channels may indicate limited stock or end-of-life status for this specific variant. Ensure compliance with moisture sensitivity level requirements during storage and handling procedures prior to assembly.

LED Indication - Discrete Selection Notes

Select this component when a standard PLCC-6 form factor is required for space-constrained PCB layouts. Consider the specific luminous intensity values for each primary color to ensure balanced white point achievement. Evaluate the thermal management capabilities of the host system given the maximum operating temperature rating of plus one hundred degrees Celsius.

LED Indication - Discrete Part Context

This part belongs to the SLV6A series of multi-color LEDs from Cree LED. The series is designed for surface-mount technology applications requiring reliable RGB output. The product line targets industries needing high-brightness indicators and displays. The specific model integrates standard pin configurations compatible with common automated placement equipment.

LED Indication - Discrete Replacement Considerations

CLV1A-FKB-CK1N1G1BB7R4S3

LED Indication - Discrete FAQ

What is the peak wavelength for the green channel?

The peak wavelength for the green channel is 530 nm.

Does this LED have a common anode or cathode configuration?

The datasheet specifies the configuration as independent, meaning the internal connections are not defined as a shared common anode or cathode in the provided summary data.
