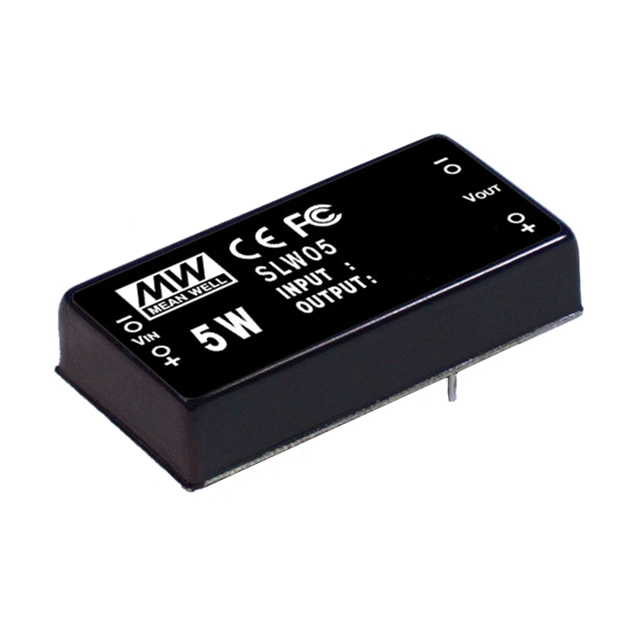

SLW05B-12

SLW05B-12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC DC CONVERTER 12V 5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SLW05B-12

• Description：DC DC CONVERTER 12V 5W
• Series：SLW05 (5W)
• Mfr：MEAN WELL USA Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：417mA
• Power (Watts)：5 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：OCP, SCP
• Operating Temperature：-25°C ~ 71°C (With Derating)
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SLW05B-12
