SLY 1 098 21 Z

Headers, Male Pins Overview

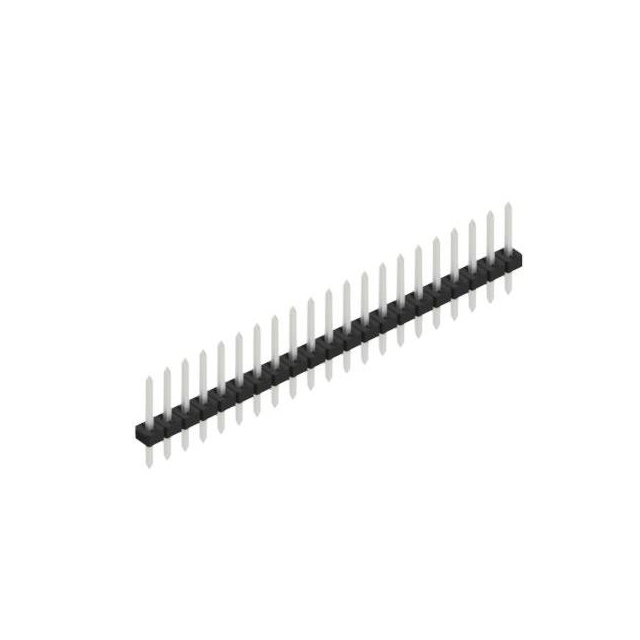

The Fischer Elektronik SLY 1 098 21 Z is a male pin header connector designed for through-hole mounting on printed circuit boards. It features 21 contacts arranged in a single row with a 2.00 mm (0.079 inch) pitch. The connector utilizes gold-plated nickel contacts to ensure reliable electrical performance and corrosion resistance. This component is engineered for secure board-to-board or wire-to-board connections, providing a stable interface for electronic assemblies requiring high-density pin configurations.

Headers, Male Pins Feature Summary

• Through-hole mounting technology for robust PCB integration
• Single-row configuration with 21 contact positions
• Gold-plated nickel contact surfaces for enhanced conductivity
• Standard 2.00 mm pitch spacing between pins

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board signal routing
• Industrial control module interfaces
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix matches the required contact plating and housing material specifications. Confirm that the through-hole footprint aligns with the target PCB design guidelines. Ensure compatibility with standard automated insertion equipment. Check for RoHS compliance documentation if required by project regulations. Validate that the 21-position count meets the exact signal or power requirements of the application.

Headers, Male Pins Selection Notes

Select this connector when a single-row, 21-pin through-hole header is required. The 2.00 mm pitch suits applications needing moderate density without excessive height constraints. Gold plating is preferred for environments demanding low contact resistance and long-term reliability. Consider mechanical retention needs as through-hole offers superior stability compared to surface mount alternatives for vibration-prone scenarios.

Headers, Male Pins Part Context

This component belongs to Fischer Elektronik's SLY series of male pin headers. The series provides various contact counts and pitch options for diverse electronic design needs. The SLY 1 098 21 Z specifically addresses requirements for 21-position connectivity. It represents a standard solution for connecting cables or daughterboards to main system PCBs in compact form factors.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 21-position count, 2.00 mm pitch, and through-hole mounting style. Verify identical contact plating specifications to ensure equivalent electrical characteristics. Check mechanical dimensions for housing height and width compatibility within the enclosure. Ensure the replacement part supports the same current rating and voltage class as the original design.
