SLY 1 098 23 Z

Headers, Male Pins Overview

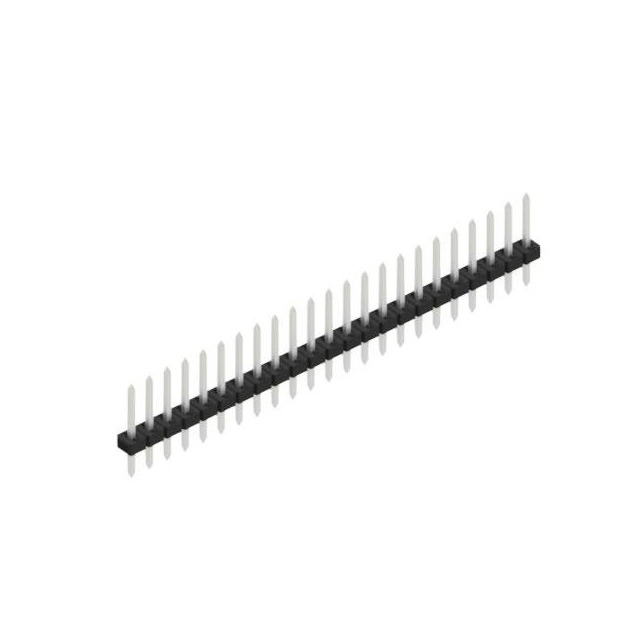

The Fischer Elektronik SLY 1 098 23 Z is a male pin header connector designed for through-hole mounting on printed circuit boards. It features a single row of 23 contacts with a 2.00 mm (0.079 inch) pitch. The component is engineered for board-to-board and wire-to-board interconnections, providing reliable electrical continuity in electronic assemblies.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single-row design accommodating 23 contact positions
• Standard 2.00 mm pitch for consistent spacing

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly integration
• General-purpose electronic circuit prototyping

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating specifications and material composition. Ensure the selected variant matches the required current rating and voltage tolerance for the target application environment. Cross-reference the manufacturer datasheet to confirm mechanical dimensions and compatibility with mating connectors before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 23-position header with a 2.00 mm pitch is required for through-hole applications. Consider the mechanical stability provided by the pin header design and ensure the operating temperature range aligns with system requirements. Evaluate space constraints on the PCB layout to accommodate the straight profile of the connector.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SLY series of male pin headers. The series offers various contact counts and pitch options to suit different density requirements. These connectors are widely used in industrial and consumer electronics for their robust construction and standardized dimensions, facilitating easy integration into existing manufacturing processes.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 23-contact count, 2.00 mm pitch, and through-hole mounting style. Verify that alternative manufacturers offer compatible plating finishes and identical mechanical footprints to ensure seamless interchangeability without redesigning the PCB layout.
