SLY 1 104 10 G

Headers, Male Pins Overview

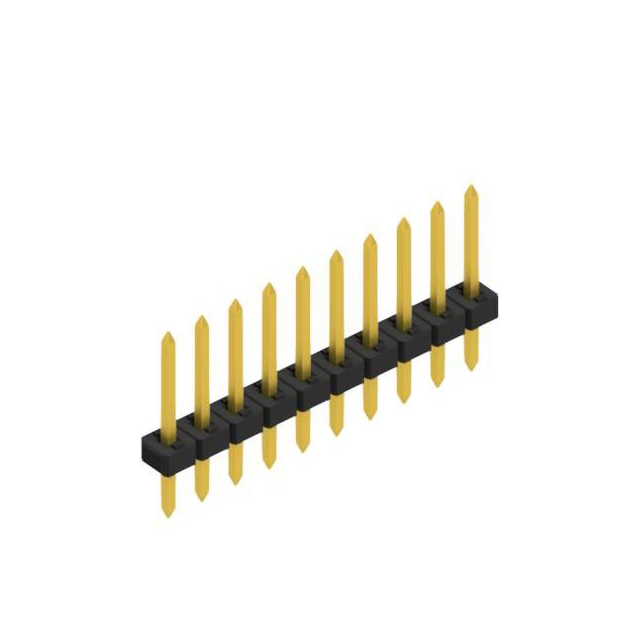

The Fischer Elektronik SLY 1 104 10 G is a male pin header connector designed for board-to-board and wire-to-board applications. It features a single row with ten contacts and utilizes a through-hole straight mounting style. The connector pitch is 2 mm, with overall dimensions of 10.4 mm in length, 3 mm in width, and 5.9 mm in height. It supports reflow soldering processes and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for reliable electrical interconnection
• Through-hole straight mounting design for PCB integration
• Reflow solderable construction compatible with standard assembly processes

Headers, Male Pins Applications

• Board-to-board signal transmission
• Wire-to-board connectivity solutions
• General electronic circuit interconnections

Headers, Male Pins Procurement Notes

Verify the specific contact surface finish requirements against project specifications, as Fischer Elektronik offers variants with different plating options such as gold or tin. Confirm that the 2 mm pitch and 10-position count align precisely with the target PCB footprint. Ensure the through-hole straight orientation matches the mechanical constraints of the assembly environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row interconnect is required for rigid PCB assemblies. The 2 mm pitch provides adequate spacing for standard trace routing. Consider the thermal limits of +163°C operating range during selection to ensure compatibility with the intended application environment and soldering profiles without compromising connector integrity.

Headers, Male Pins Part Context

This part belongs to Fischer Elektronik's SLY series of male headers, which are engineered for robust PCB connections. The series typically offers various contact counts and pitch options to suit diverse electronic design needs. Fischer Elektronik specializes in connectors and cable assemblies, emphasizing precision manufacturing and compliance with international safety standards for industrial and consumer electronics.

Headers, Male Pins FAQ

What is the maximum operating temperature for the SLY 1 104 10 G?

The connector is rated for an operating temperature range up to +163°C.

Is the SLY 1 104 10 G compatible with reflow soldering?

Yes, the component is explicitly designed to be reflow solderable.
