SLY 1 139 10 S

Headers, Male Pins Overview

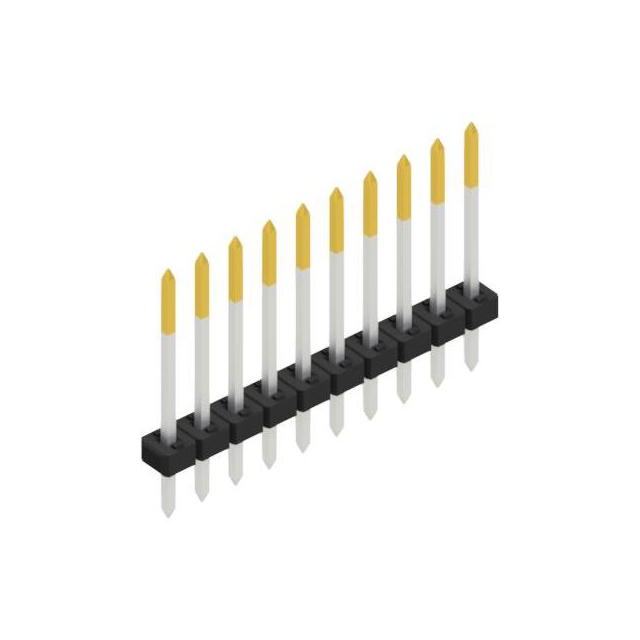

The SLY 1 139 10 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features ten positions with a 2.00 mm (0.079 inch) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes square-shaped contacts made of copper-tin alloy, finished with tin plating to ensure reliable electrical connections. Constructed with polyamide insulation rated UL 94 V-0, the component supports soldering temperatures up to 260°C for 10 seconds and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Through-hole mounting design for secure PCB integration
• Single-row configuration with ten contact positions
• Polyamide insulation material providing UL 94 V-0 flame retardancy
• Tin-plated copper-tin contacts for corrosion resistance

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring signal interconnection
• Industrial control systems utilizing standard pin headers
• Consumer electronics manufacturing processes

Headers, Male Pins Procurement Notes

Verify the specific part number SLY 1 139 10 S against official Fischer Elektronik documentation to confirm the 2.00 mm pitch and ten-position count. Ensure compatibility with existing board layouts and mating connectors. Confirm that the tin-plated contact finish meets the required environmental and electrical standards for the intended application before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with a 2.00 mm pitch is required. The ten-position count suits applications needing moderate I/O density in compact spaces. Consider the through-hole technology requirement and the operating temperature range of -40°C to +163°C. Verify that the square contact shape aligns with the mating socket or cable assembly specifications.

Headers, Male Pins Part Context

This component belongs to the SLY 1 139 series from Fischer Elektronik, which offers various position counts and pitch options. The series is characterized by its robust construction and suitability for high-temperature soldering processes. Similar parts in the series include variants with different pin counts and pitches, such as the SLY 1 139 38 S with a 2.54 mm pitch.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00 mm pitch, ten-position count, and through-hole mounting style. Verify that any replacement maintains the same UL 94 V-0 insulation rating and compatible contact materials. Cross-reference with Fischer Elektronik's official cross-reference guides for exact equivalents.
