SLY 1 139 24 G

Headers, Male Pins Overview

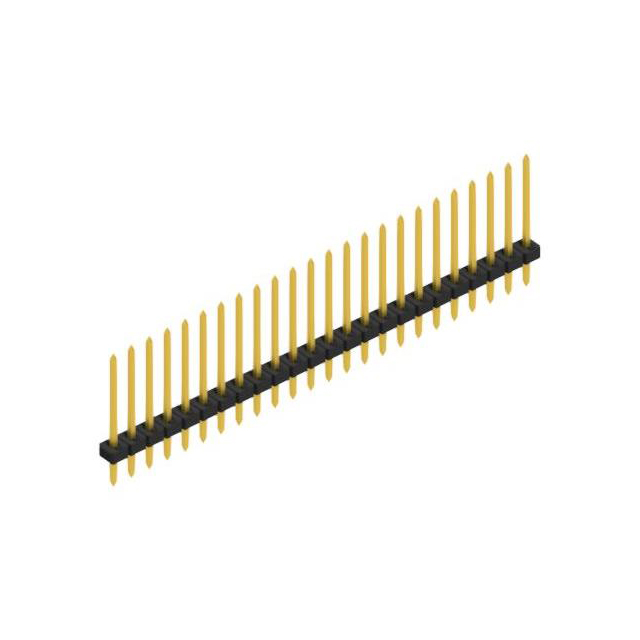

The SLY 1 139 24 G is a male header connector from the Fischer Elektronik SLY 1 139 series, designed for through-hole mounting. It features 24 positions with a 0.079 inch (2.00 mm) pitch. The contacts are tin-plated and made of copper-tin alloy, offering a mating contact length of 0.319 inches (8.10 mm). The unit operates within a temperature range of -40°C to +163°C and withstands soldering at 260°C for 10 seconds. It meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Tin-plated square pin contacts for reliable electrical connection
• High thermal stability supporting standard reflow soldering processes

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Industrial control system hardware assembly
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure the selected variant matches the required 2.00 mm pitch and 24-pin count for your design. Cross-reference the thermal ratings with your assembly process requirements to guarantee compatibility with soldering temperatures.

Headers, Male Pins Selection Notes

Choose this component when a 2.00 mm pitch male header is required for through-hole applications. The tin-plated finish provides adequate conductivity for general use. Consider the physical dimensions and height constraints of your enclosure. Verify that the operating temperature range aligns with the environmental conditions of the final product application.

Headers, Male Pins Part Context

This part belongs to the SLY 1 139 series of precision-engineered male headers by Fischer Elektronik. The series offers various pin counts and spacing options for diverse electronic assembly needs. These connectors are characterized by their compact design and robust construction, suitable for high-density PCB layouts requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00 mm pitch, 24-position count, and through-hole mounting style. Verify that alternative components share similar thermal resistance and UL 94 V-0 classification. Check contact material and plating thickness to ensure equivalent performance characteristics.
