SLY 2 081 10 S

Headers, Male Pins Overview

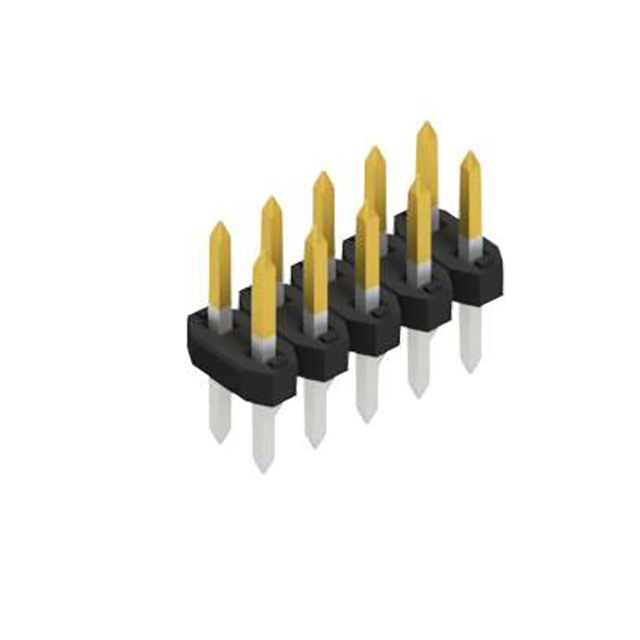

The SLY 2 081 10 S is a male pin header connector manufactured by Fischer Elektronik, designed for through-hole mounting. It features a 10-position configuration with a 2.00 mm (0.079 inch) pitch arranged in two rows. The insulating body is constructed from PA 4.6 GF material, rated UL 94 V-0 for flammability. Electrical specifications include a nominal voltage of 100 V DC and a test voltage of 500 V. The operating temperature range spans from -40°C to +163°C, with soldering resistance up to 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Through-hole straight pin header design for board-to-board or wire-to-board connections
• Selective gold-plated contact surface ensuring reliable signal transmission
• High-temperature resistant PA 4.6 GF insulating body with UL 94 V-0 rating

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly applications
• Electronic modules requiring high-temperature stability

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's datasheet to confirm contact count and plating options. Ensure the selected variant matches the required pitch and row configuration for the target PCB footprint. Cross-reference technical drawings for mechanical dimensions before integration into the design.

Headers, Male Pins Selection Notes

Select this component when a 2-row, 10-position male header with 2.00 mm pitch is required. Consider the -40°C to +163°C operating range for environmental compatibility. Verify that the through-hole mounting style aligns with the assembly process and PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the SLY series of male pin headers from Fischer Elektronik. The series offers various contact counts ranging from 4 to 100 positions. The SLY 2 081 designation indicates a specific mechanical form factor within this family, characterized by its straight pin orientation and standard 2.00 mm spacing.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly listed in the provided documentation. Evaluate other Fischer Elektronik SLY series headers with identical 2.00 mm pitch and 10-position count. Ensure mechanical dimensions and electrical ratings match the original requirements before substitution.
