SLY 2 081 72 S

Headers, Male Pins Overview

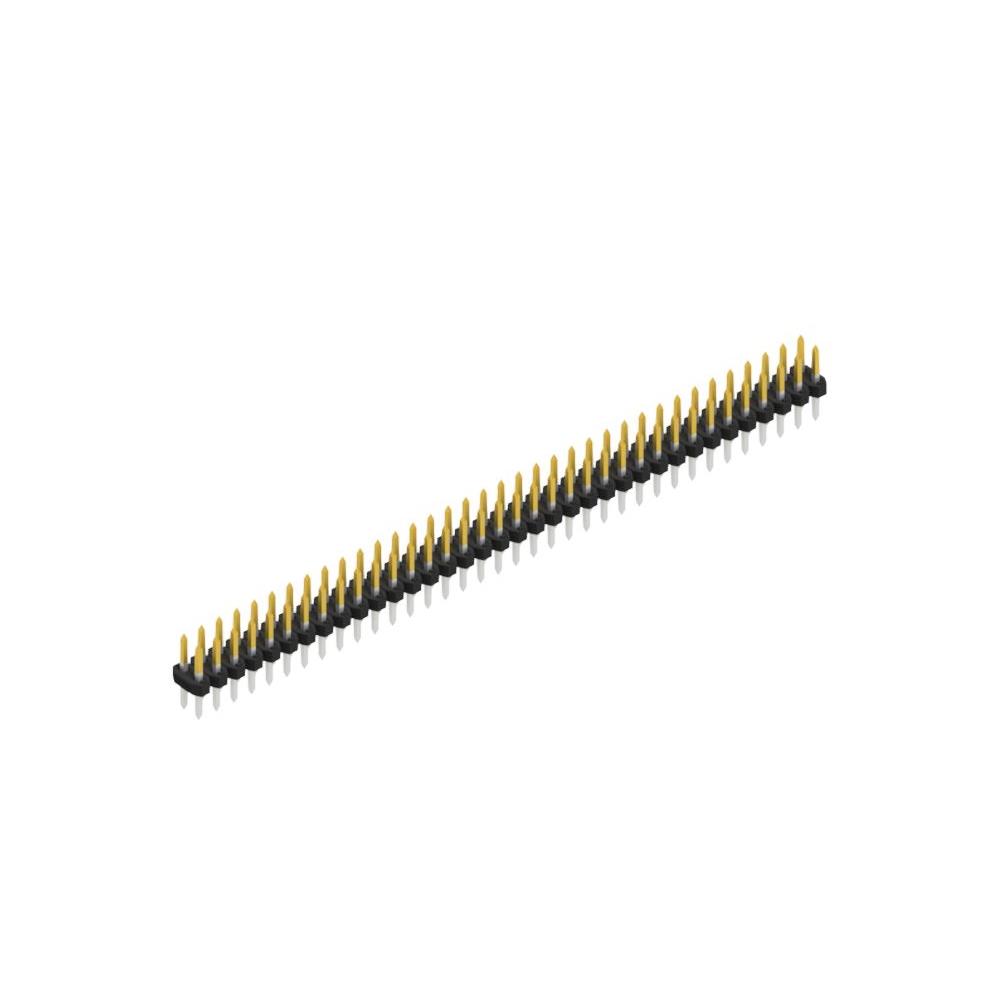

The SLY 2 081 72 S is a male pin header manufactured by Fischer Elektronik, designed for board-to-board and wire-to-board connections. It features a 2 mm pitch with two rows and 72 contacts in a through-hole straight configuration. The component has an overall contact length of 8.10 mm and an insulation height of 1.50 mm. The mating surface is finished with tin plating, and the contact shape is square.

Headers, Male Pins Feature Summary

• Supports both board-to-board and wire-to-board interconnection applications
• Features a compact design with adjustable insulator position along the total pin length
• Utilizes square-shaped contacts with a tin-plated mating finish

Headers, Male Pins Applications

• Board-to-board electronic interconnections
• Wire-to-board circuit assembly
• Precision electronic component integration

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Fischer Elektronik documentation to confirm exact physical dimensions and contact specifications. Ensure compatibility with required PCB mounting styles and thermal profiles during procurement validation.

Headers, Male Pins Selection Notes

Select this component when a high-density 72-contact solution is required within a compact footprint. The 2 mm pitch allows for standard spacing while maintaining robust mechanical stability. Confirm that the straight through-hole mounting style aligns with the target PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the SLY 2 081 series of precision-engineered male headers from Fischer Elektronik. The series is characterized by its small form factor, measuring approximately 8.1 mm in length, 3 mm in width, and 3.6 mm in height, suitable for space-constrained electronic designs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other variants within the SLY 2 081 family, such as SLY 2 081 72 Z, which shares similar structural characteristics but may differ in contact finish or specific dimensional tolerances as defined by the manufacturer.
