SLY 3 041 26 S

Headers, Male Pins Overview

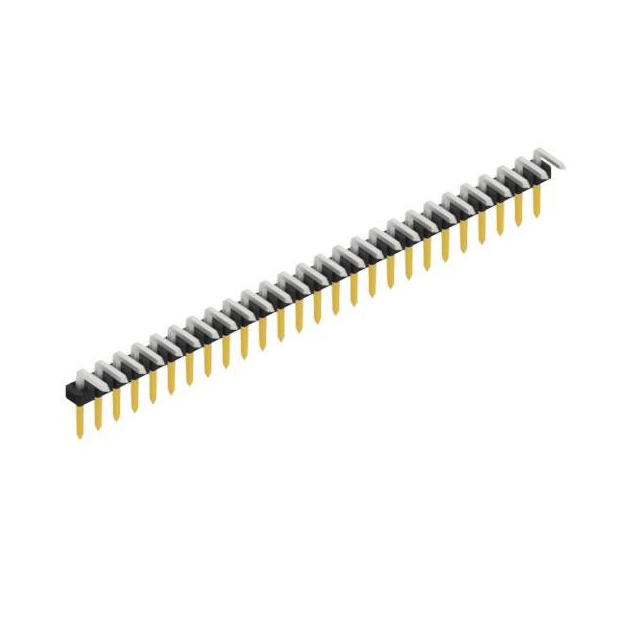

The SLY 3 041 26 S is a single-row male pin header manufactured by Fischer Elektronik, designed for through-hole mounting on printed circuit boards. It features a 2.00 mm pitch and accommodates 26 contacts in a right-angle configuration. The component utilizes a push-pull fastening type and offers solder termination for secure board attachment. Mating contact length measures 4.09 mm, while the post length is 2.80 mm. Insulation properties support standard electronic assembly requirements.

Headers, Male Pins Feature Summary

• Right-angle through-hole construction for compact board-to-board or wire-to-board connections
• Single-row layout with standardized 2.00 mm pitch spacing
• Push-pull fastening mechanism ensures stable mechanical retention

Headers, Male Pins Applications

• Board-to-board interconnections requiring right-angle orientation
• Wire-to-board connections in consumer electronics assemblies
• Industrial control panel signal routing

Headers, Male Pins Procurement Notes

Verify exact contact count and termination style against official datasheets before ordering. Confirm that the right-angle form factor matches your PCB layout constraints. Ensure soldering profiles align with thermal specifications to prevent insulation damage during reflow processes.

Headers, Male Pins Selection Notes

Choose this component when a single-row, right-angle connector is required for 26-pin interfaces. The 2.00 mm pitch suits general-purpose digital and analog signal transmission. Evaluate space limitations carefully due to the protruding height of the right-angle design.

Headers, Male Pins Part Context

This part belongs to the SLY 3 series of pin headers from Fischer Elektronik, a German manufacturer established in 1969. The series focuses on extruded and finger-shaped heat sinks alongside card connectors and cable harnesses. Fischer Elektronik holds ISO 9001, 14001, and 27001 certifications.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SLY 3 series variants with matching 2.00 mm pitch and single-row configuration. Verify identical post length and mating contact dimensions to ensure mechanical compatibility with existing housing or mating connectors.
