SLY 4 035 22 Z

Headers, Male Pins Overview

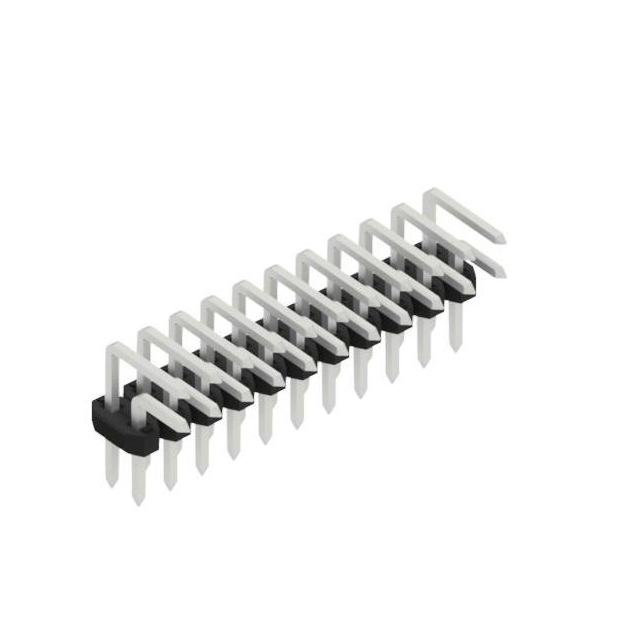

The Fischer Elektronik SLY 4 035 22 Z is a male pin header from the SLY 4 series, designed for PCB connections. It features 22 poles arranged in 2 rows with a 2.00 mm pitch and row spacing. The component has a compact footprint with dimensions of 1.5 mm (A), 2.8 mm (B), and 8.2 mm (C). It utilizes gold-plated contacts (Au Ni+ ≥0.2µm) over nickel plating (Ni+ 46µm) to ensure reliable conductivity. The unit supports operating temperatures from -40°C to +163°C and withstands soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Dual-row configuration with 22 poles for high-density interconnects
• Gold-plated contact surfaces ensuring corrosion resistance and stable electrical performance
• Compact mechanical design optimized for space-constrained PCB layouts

Headers, Male Pins Applications

• High-density electronic circuit board interconnections
• Signal transmission in industrial control systems
• Connector interfaces for precision measurement equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm surface finish specifications, as suffixes may denote variations in plating or packaging. Ensure compatibility with mating female headers regarding pitch and row spacing. Confirm RoHS compliance status if required by project regulations. Cross-reference the part number with official Fischer Elektronik catalogs to avoid confusion with similar SLY 4 variants.

Headers, Male Pins Selection Notes

Select this component when a 2.00 mm pitch dual-row header is required for robust signal integrity. The gold plating is suitable for environments where corrosion resistance is critical. Verify that the 22-pole count matches the circuit design requirements. Consider the thermal rating of +163°C for applications involving elevated operating temperatures or reflow soldering processes.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SLY 4 series of male pin headers. The series is characterized by precision engineering and compact dimensions, facilitating optimal space utilization in dense electronic assemblies. The SLY 4 035 variant specifically denotes the height and width profile, while the pole count defines the electrical capacity.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fischer Elektronik directly for equivalent alternatives or cross-reference compatible components based on identical pitch, pole count, and mounting style.
