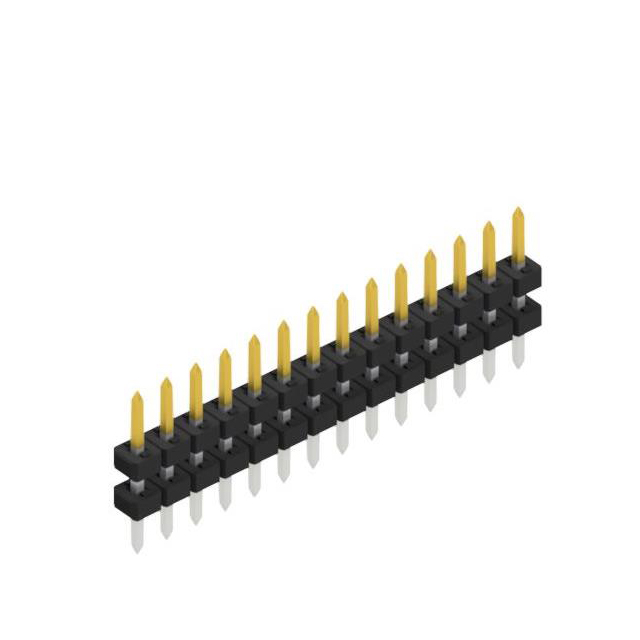

SLY 5 040 14 S is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.5 MM, SUITABLE FOR. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for SLY 5 040 14 S
- Description：ONE ROW, 0.5 MM, SUITABLE FOR
- Series：SLY 5 040
- Mfr：Fischer Elektronik
- Package：-
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：14
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.142" (3.60mm)
- Contact Length - Post：0.110" (2.80mm)
- Overall Contact Length：0.409" (10.40mm)
- Insulation Height：0.059" (1.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：157.5µin (4.00µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Tin
- Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
- Features：-
- Operating Temperature：-40°C ~ 163°C
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：100VDC
Headers, Male Pins datasheet and documents for SLY 5 040 14 S
Headers, Male Pins Overview
The Fischer Elektronik SLY 5 040 14 S is a single-row through-hole pin strip connector designed for use with compatible female crimp terminals. This component features a square contact dimension of 0.5 mm and provides 14 positions for signal interconnection. The unit has a physical length of 10.4 mm, facilitating compact integration into electronic assemblies requiring reliable pin-to-socket connectivity.
Headers, Male Pins Feature Summary
- Single-row configuration for standardized signal routing
- Compatible with BLY type female crimp terminal strips
- 0.5 mm square contact geometry for precise alignment
Headers, Male Pins Applications
- Signal and high-power contact interconnections
- Integration with BLY series female crimp terminals
- Compact electronic assembly pin headers
Headers, Male Pins Procurement Notes
Verify the exact part number against manufacturer documentation to ensure compatibility with specific BLY terminal types. Confirm that the required contact count matches the 14-position specification. Review technical drawings for mechanical fitment constraints within the target enclosure or PCB layout before finalizing procurement orders.
Headers, Male Pins Selection Notes
Select this component when a single-row pin header is required for mating with BLY female crimp terminals. Ensure the application environment supports the standard operating conditions defined by Fischer Elektronik. Consider the 10.4 mm length constraint during mechanical design phases to guarantee proper clearance and assembly feasibility.
Headers, Male Pins Part Context
Fischer Elektronik specializes in extruded and finger-shaped heat sinks, LED components, and connectors. The SLY series represents their range of pin strips designed for robust signal transmission. This specific model belongs to the single-row family, offering a standardized solution for connecting circuits using compatible crimped female contacts.
Headers, Male Pins FAQ
What type of female terminals are compatible with this pin strip?
This component is designed for use with BLY type female crimp terminal strips.
What is the contact dimension of the SLY 5 040 14 S?
The connector features a square contact dimension of 0.5 mm.
