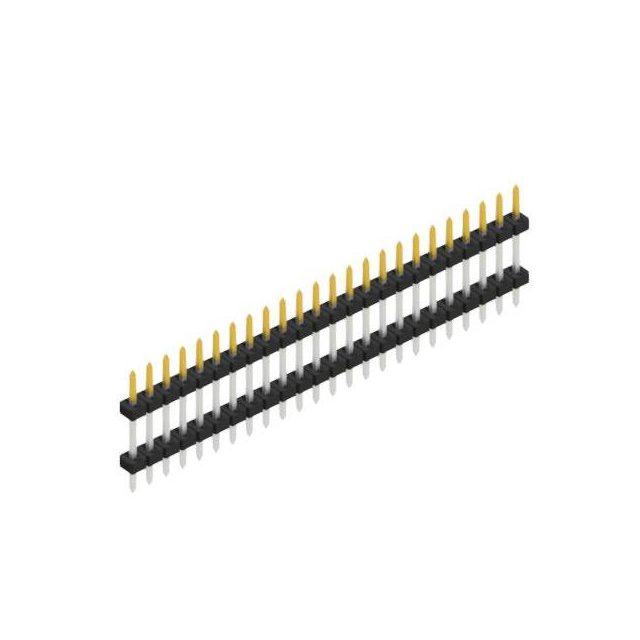

SLY 5 075 24 S

SLY 5 075 24 S is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.5 MM, SUITABLE FOR. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SLY 5 075 24 S

• Description：ONE ROW, 0.5 MM, SUITABLE FOR
• Series：SLY 5 075
• Mfr：Fischer Elektronik
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：24
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.142" (3.60mm)
• Contact Length - Post：0.110" (2.80mm)
• Overall Contact Length：0.547" (13.90mm)
• Insulation Height：0.059" (1.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：157.5µin (4.00µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Tin
• Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
• Features：-
• Operating Temperature：-40°C ~ 163°C
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：100VDC

Headers, Male Pins datasheet and documents for SLY 5 075 24 S
