SLY 5 122 11 Z

Headers, Male Pins Overview

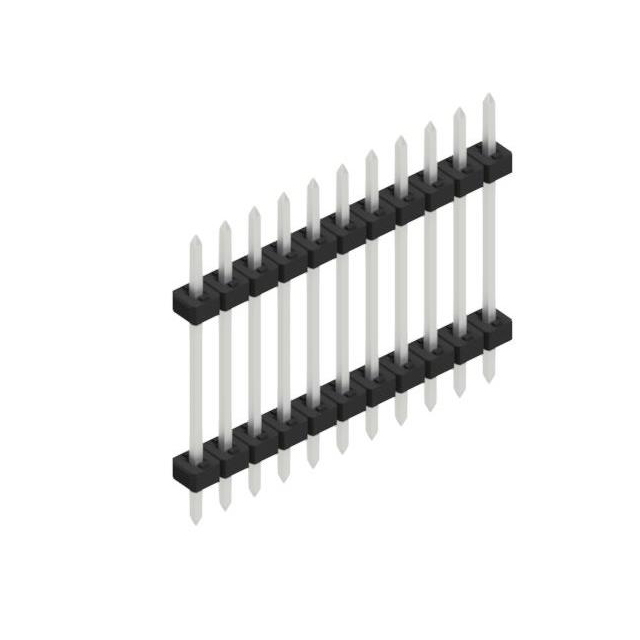

The SLY 5 122 11 Z is a male pin header manufactured by Fischer Elektronik, designed for board-to-board and wire-to-board interconnections. It features a single row with 11 contacts and utilizes a 2 mm (0.079 inch) pitch. The component is intended for through-hole mounting on printed circuit boards. Electrical specifications include a nominal current rating of 3 A and a nominal voltage of 100 V DC, with a test voltage capability of 100 V DC. The contact resistance is specified as less than or equal to 5 mΩ.

Headers, Male Pins Feature Summary

• Precision-engineered tin-plated contact surface ensures reliable electrical connections
• Single-row configuration facilitates compact stacked PCB interconnections
• Through-hole straight design supports secure board-to-board mounting

Headers, Male Pins Applications

• Stacked printed circuit board interconnections
• Board-to-board signal transmission
• Wire-to-board connection assemblies

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the required 11-position configuration when sourcing. Confirm that the 2 mm pitch aligns with the target PCB footprint. Ensure the through-hole straight form factor is compatible with the assembly orientation. Cross-reference the tin-plated finish requirement against environmental constraints. Validate the 3 A current rating sufficiency for the application load.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2 mm pitch is required for low-voltage signal routing. The 11-contact length suits moderate density interconnect needs. Consider the through-hole mounting method if surface-mount alternatives are unsuitable. The tin plating offers standard corrosion resistance for general industrial environments. Verify mechanical height constraints relative to adjacent components.

Headers, Male Pins Part Context

This part belongs to the SLY 5 122 series of male headers from Fischer Elektronik. The series provides standardized spacing options for electronic interconnects. Variants within the series differ primarily in contact count, such as positions 22, 41, 46, and 47. All share the same 2 mm pitch and through-hole straight architecture. The series supports modular expansion in multi-layer PCB designs.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2 mm pitch, single-row layout, and 11-contact count. Compatible alternatives include other manufacturers' tin-plated male headers with identical through-hole straight geometry. Verify that replacement parts meet the 3 A nominal current and ≤5 mΩ contact resistance specifications. Ensure mechanical dimensions match the existing PCB footprint to avoid rework.
