SLY 6 081 100 G

Headers, Male Pins Overview

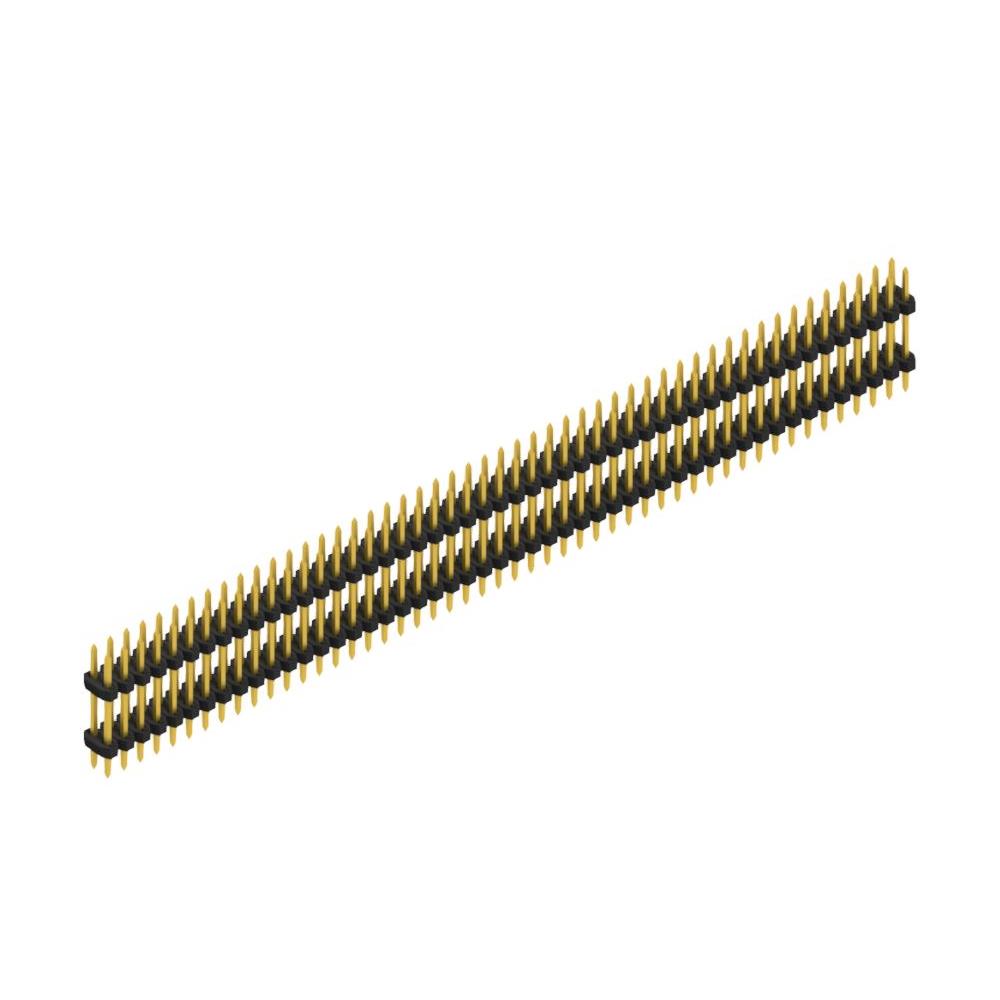

The SLY 6 081 100 G is a male pin header manufactured by Fischer Elektronik, designed for board-to-board and wire-to-board interconnections. It features a 2 mm pitch with two rows and 100 contacts in a through-hole straight configuration. The connector utilizes copper tin contacts with a tin finish. The insulating body is constructed from glass-filled polyamide (PA46), ensuring mechanical stability. It operates within a temperature range of -40°C to +163°C and supports a test voltage of 500 V DC.

Headers, Male Pins Feature Summary

• Two-row male pin header design for stacked PCB interconnections
• Through-hole straight mounting configuration
• Glass-filled polyamide insulation body for structural integrity
• Tin-plated copper contacts for reliable conductivity

Headers, Male Pins Applications

• Stacked printed circuit board assemblies
• Wire-to-board connections
• Board-to-board interconnects
• Electronic equipment requiring high-density headers

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the '100' designation in the model number, as Fischer Elektronik uses sequential numbering for varying lengths within the same series. Confirm that the PA46 GF insulation material meets the thermal requirements of the target application environment. Ensure the through-hole straight form factor aligns with the PCB layout constraints. Cross-reference the datasheet for the exact UL flammability rating and operating temperature limits before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a 2 mm pitch male header with 100 contacts is required for vertical stacking or direct board attachment. The glass-filled polyamide body provides necessary rigidity for high-contact-count applications. Verify compatibility with corresponding female headers, such as the BLY series, to ensure proper mating engagement. Consider the -40°C to +163°C operating range for environmental suitability.

Headers, Male Pins Part Context

This part belongs to the SLY 6 series of male PCB connectors from Fischer Elektronik. The series offers various contact counts, indicated by the numeric suffix in the model name. These headers are engineered for robust electronic assemblies, providing stable electrical connections between boards. The consistent 2 mm pitch allows for standardized spacing across different configurations within the product line.

Headers, Male Pins Replacement Considerations

Compatible female counterparts include the BLY series headers. When substituting, verify that the replacement part maintains the 2 mm pitch, two-row configuration, and 100-contact count. Ensure the insulating material and temperature ratings meet or exceed the original specifications.
