SLY 7 SMD 045 6 G B TR

Headers, Male Pins Overview

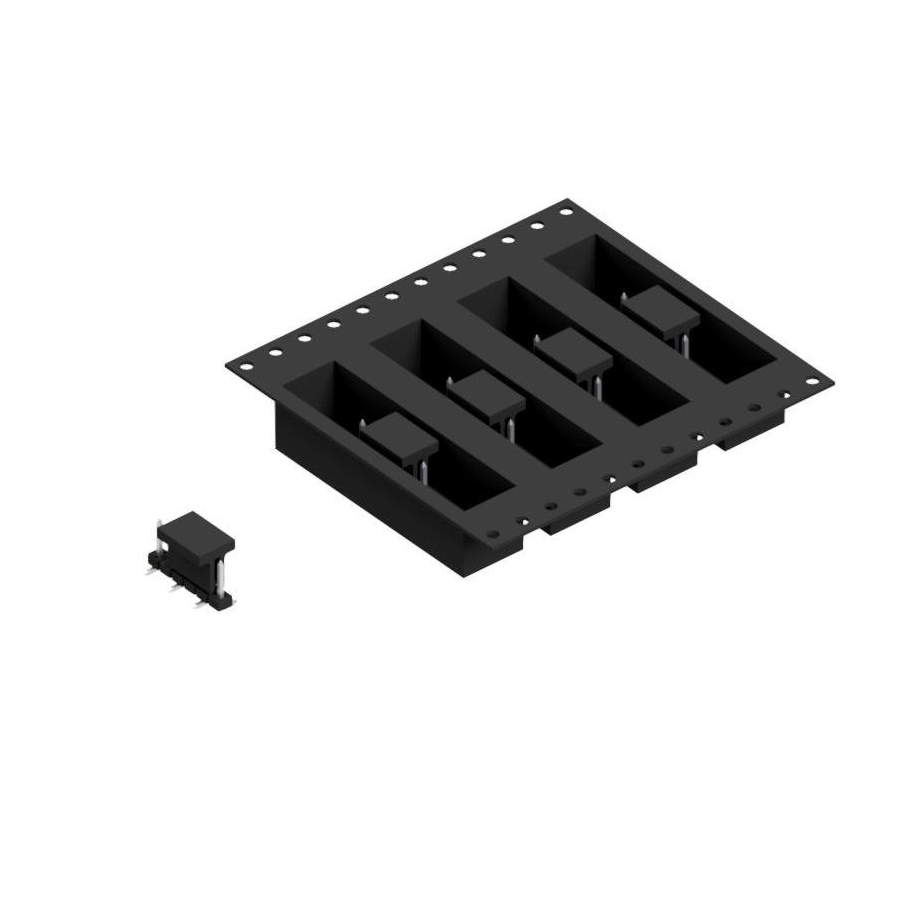

The Fischer Elektronik SLY 7 SMD 045 6 G B TR is a surface mount pin header featuring six positions with a 2.00 mm pitch. It utilizes gold-plated CuSn alloy contacts and a PA 4.6 GF insulator rated UL 94 V-0. The component supports 100 V DC and 500 V test voltage, with a current rating of 3 A and contact resistance ≤5 mΩ.

Headers, Male Pins Feature Summary

• Surface mount straight configuration for board-to-board or wire-to-board connections
• Gold-plated CuSn alloy contacts ensuring low resistance and reliable conductivity
• High-flammability PA 4.6 GF insulation body for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Fischer Elektronik documentation to confirm exact contact plating and packaging specifications. Ensure the selected variant matches the required surface mount orientation and terminal count for the target PCB layout.

Headers, Male Pins Selection Notes

Select this component for applications requiring a 2.00 mm pitch surface mount header. Confirm that the 3 A current rating and 100 V DC voltage limits align with the system requirements. Verify compatibility with automated pick-and-place processes due to the surface mount design.

Headers, Male Pins Part Context

This part belongs to the SLY 7 SMD series, which offers compact pin headers in varying contact counts from four to fifteen. The series provides consistent 2.00 mm pitch spacing across different configurations, supporting diverse mounting needs within a standardized form factor.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik cross-reference data for verified substitutes. Generic equivalents may differ in contact material, flammability rating, or mechanical retention strength.
