SLY 8 SMD 036 70 Z B SM

Headers, Male Pins Overview

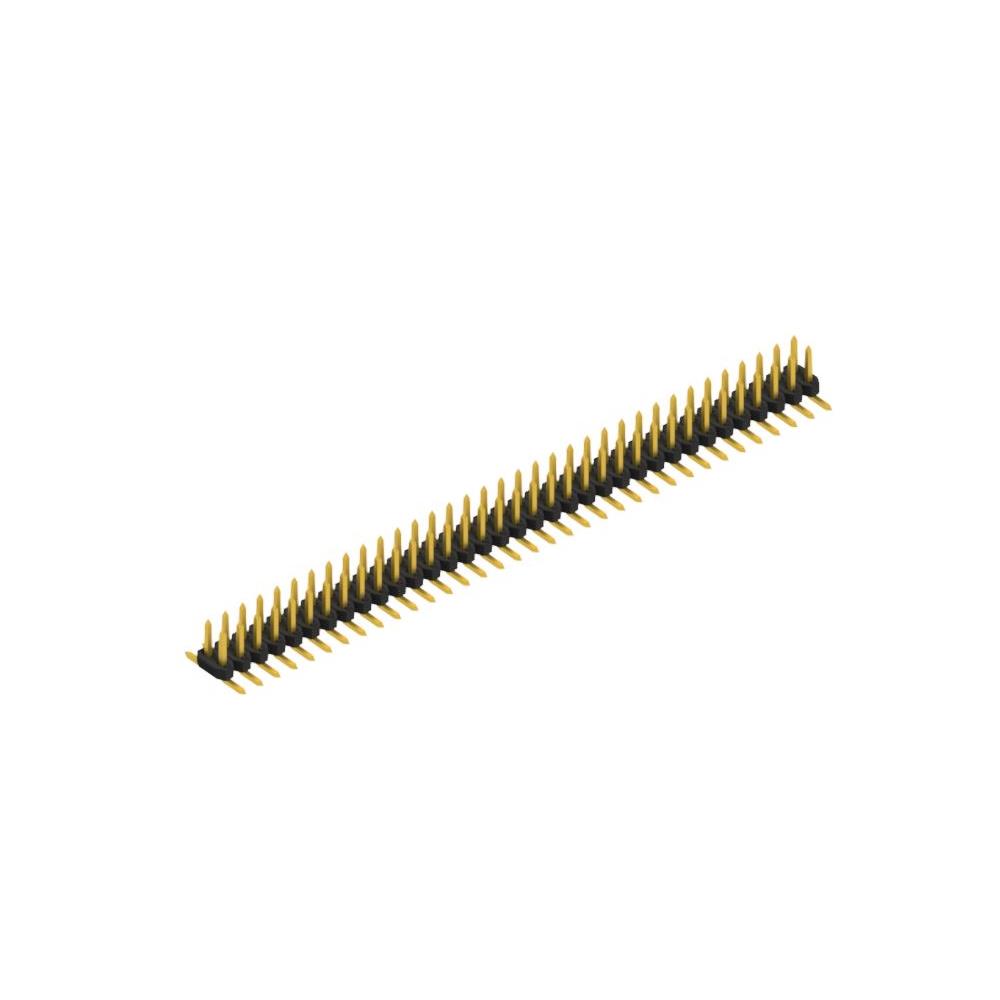

The SLY 8 SMD 036 70 Z B SM is a surface-mount header from Fischer Elektronik's SLY 8 series. It features 70 positions with a 2.00mm pitch and 2.00mm row spacing. The connector supports pick-and-place assembly via bar magazine (SM). Plating options include Ni+≥0.2µm Au or Ni+46µm Sn. Operating temperature range is -40°C to +163°C, with reflow soldering capability at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Surface-mount design compatible with automated pick-and-place processes using bar magazines
• High-density 70-position configuration with precise 2.00mm pitch and row spacing
• Robust thermal stability supporting operation up to 163°C and high-temperature reflow soldering

Headers, Male Pins Applications

• Automated PCB assembly lines requiring high-volume surface-mount headers
• Industrial control systems utilizing dense interconnect solutions
• Electronic equipment needing reliable board-to-board or cable connections

Headers, Male Pins Procurement Notes

Verify the specific plating variant required, as the product line offers both gold and tin finishes. Confirm that the 'SM' suffix aligns with your manufacturing equipment's compatibility with bar magazine formats. Ensure the 70-position count matches your circuit design requirements before ordering. Cross-reference the exact model number with official Fischer Elektronik documentation to confirm current availability and technical specifications.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count surface-mount header is necessary for space-constrained designs. The 2.00mm pitch allows for dense routing while maintaining standard spacing. Consider the operating temperature range if the application involves high thermal environments. Choose between gold or tin plating based on corrosion resistance needs and cost constraints. Verify mechanical fit within the designated PCB footprint area.

Headers, Male Pins Part Context

This part belongs to the SLY 8 SMD series of pin headers manufactured by Fischer Elektronik. The series provides various contact counts and configurations for surface-mount applications. Fischer Elektronik specializes in connectors, sockets, and cooling solutions for electronic components. This specific model represents a high-density option within their standard SMD header portfolio.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 70-position count, 2.00mm pitch, and surface-mount form factor. Verify compatibility with existing pick-and-place machinery if using the SM packaging variant. Check if alternative plating options are acceptable for the specific application environment.
