SLY 8 SMD 045 60 S

Headers, Male Pins Overview

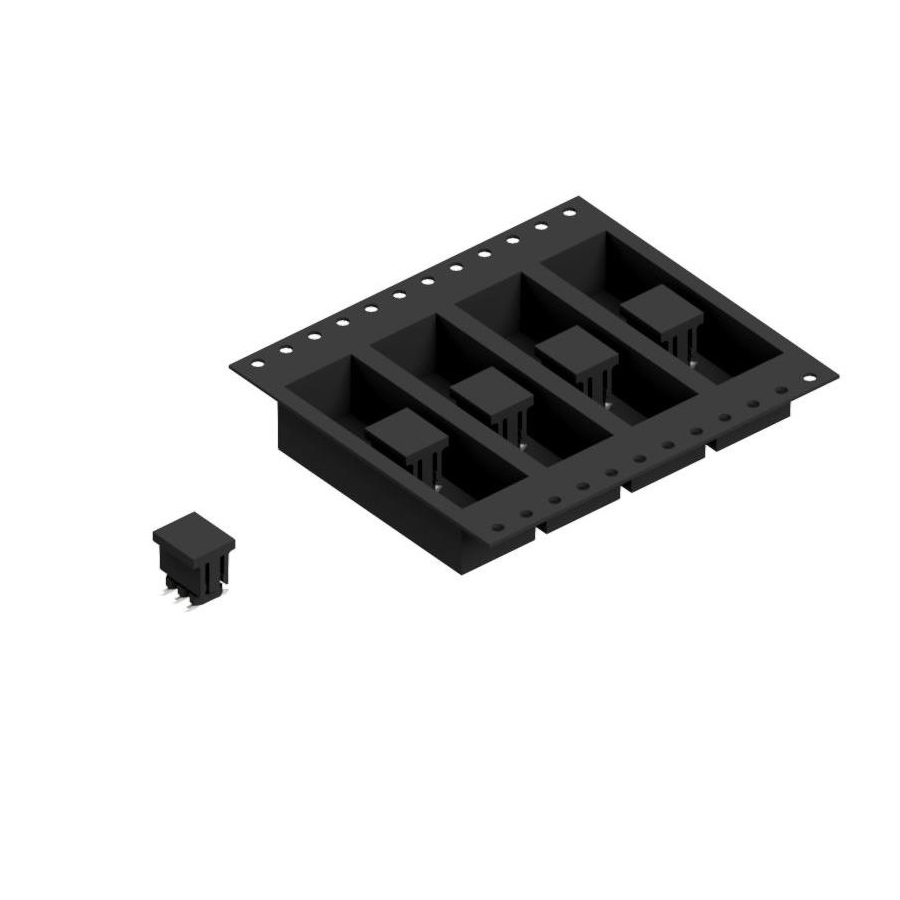

The SLY 8 SMD 045 60 S is a surface-mount male pin header manufactured by Fischer Elektronik. It features a 2x30 contact configuration, providing a total of 60 positions. The connector utilizes a 2.00 mm (0.079 inch) pitch between contacts and a 2.00 mm row spacing for the dual-row layout. Designed for automated assembly, it employs a solder tail termination method suitable for reflow processes. The component measures approximately 6.5 mm in height and is constructed with gold-plated contacts to ensure reliable signal transmission and corrosion resistance in electronic interconnect applications.

Headers, Male Pins Feature Summary

• Dual-row surface-mount design optimized for high-density PCB layouts
• Gold-plated male contacts ensure durable electrical connectivity
• Standardized 2.00 mm pitch supports consistent mating with compatible sockets

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics board-to-board connections
• Automotive electronic module interfaces

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' corresponds to the standard tin-plated or specified finish variant required for your application, as Fischer Elektronik uses suffixes to denote plating and packaging differences. Confirm the 60-position count matches your circuit requirements. Ensure compatibility with standard lead-free reflow profiles if RoHS compliance is mandatory for your production line.

Headers, Male Pins Selection Notes

Select this component when a compact, dual-row header with a 2.00 mm pitch is required for surface-mount technology. The 60-position count suits applications needing extensive I/O or data bus connections in limited space. Consider the 6.5 mm profile height relative to surrounding components. Verify that the mating connector accepts 2.00 mm pitch pins to maintain mechanical and electrical integrity.

Headers, Male Pins Part Context

This part belongs to the SLY 8 SMD series, a family of surface-mount pin headers from Fischer Elektronik. The series offers various pole counts and row configurations, all sharing the same 2.00 mm pitch and mounting footprint. The SLY 8 designation indicates the specific housing style and contact arrangement within the manufacturer's broader connector portfolio.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2x30 position count, 2.00 mm pitch, and surface-mount termination. Check Fischer Elektronik variants like SLY 8 SMD 045 60 G B SM for gold-plated alternatives. Cross-brand replacements require identical mechanical dimensions and electrical ratings to ensure fit and function.
