SLY 9 SMD 040 15 Z B SM

Headers, Male Pins Overview

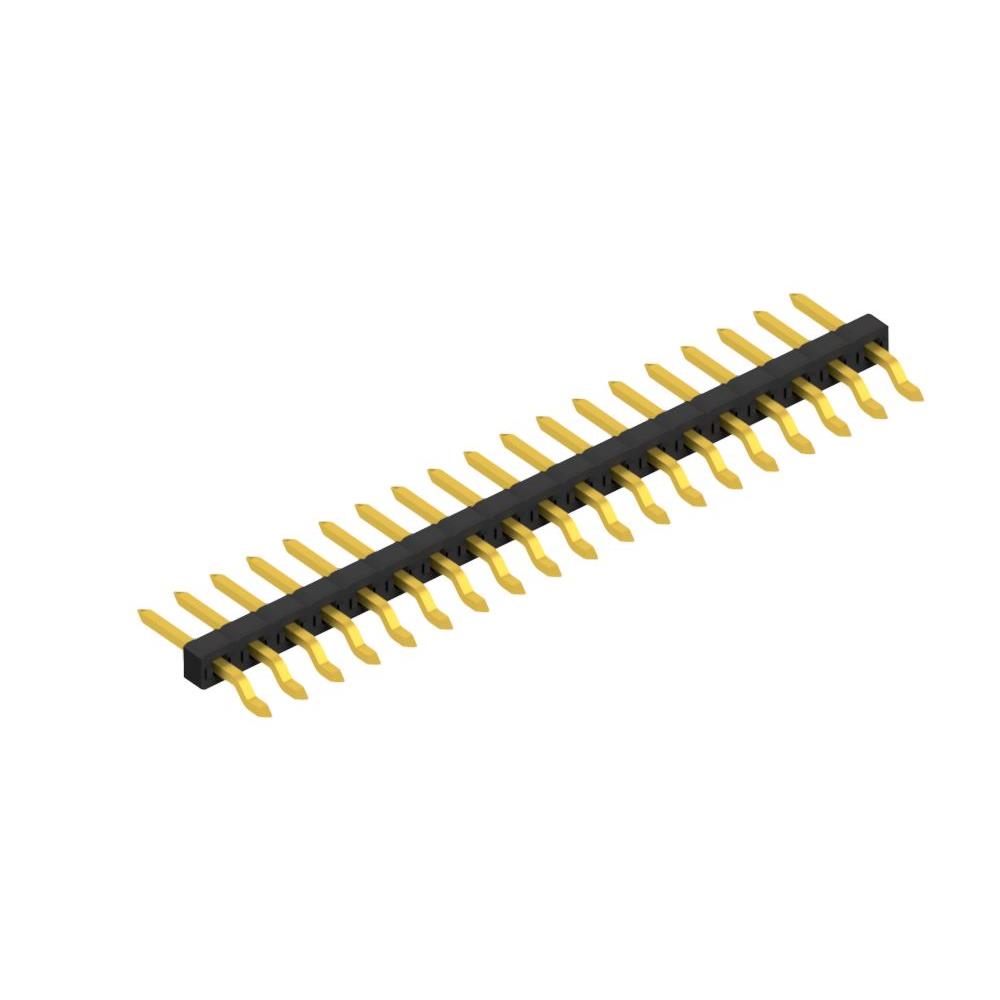

The Fischer Elektronik SLY 9 SMD 040 15 Z B SM is a single-row male pin header designed for surface mount technology. It features a 2.00 mm pitch and accommodates 15 contacts. The component supports a nominal voltage of 100 V and a current rating of 3 A, with volume resistance specified at ≤5 mΩ. Physical dimensions include an approximate length of 8.8 mm, width of 3.3 mm, and height of 4 mm. Contact plating options include gold or tin variants.

Headers, Male Pins Feature Summary

• Surface mount construction for automated PCB assembly
• Single row configuration with 2.00 mm contact spacing
• Robust electrical ratings supporting 100 V and 3 A operations
• Low volume resistance ensuring reliable signal transmission

Headers, Male Pins Applications

• Industrial electronics manufacturing connections
• Compact electronic device interconnects
• Board-to-board wiring systems
• Wire-to-board attachment applications

Headers, Male Pins Procurement Notes

Verify the specific contact plating variant required for your application, as the series offers both gold and tin sleeve options. Confirm that the surface mount footprint matches your PCB design constraints. Ensure the 15-position count aligns with circuit requirements before finalizing orders to avoid compatibility issues.

Headers, Male Pins Selection Notes

Choose this component when space-constrained surface mounting is necessary for high-density connections. The 2.00 mm pitch provides a balance between density and solderability. Consider the environmental conditions to select between gold or tin contact finishes based on corrosion resistance needs and mating cycle requirements.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SLY 9 SMD series, which specializes in compact, right-angle male headers. The series is engineered for reliability in industrial environments, offering consistent performance across various board-to-board and wire-to-board applications requiring secure mechanical and electrical connections.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SLY 9 SMD 040 12 Z B SM and SLY 9 SMD 040 13 Z B SM for different pole counts. Verify identical pitch and row configurations when cross-referencing other manufacturers' equivalents to ensure mechanical fit.
