SM05B-TP

SM05B-TP is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is TVS DIODE 5VWM 15VC SOT23. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SM05B-TP

• Description：TVS DIODE 5VWM 15VC SOT23
• Series：-
• Mfr：MCC (Micro Commercial Components)
• Package：Bulk
• Type：Zener
• Bidirectional Channels：2
• Voltage - Reverse Standoff (Typ)：5V (Max)
• Voltage - Breakdown (Min)：6V
• Voltage - Clamping (Max) @ Ipp：15V
• Current - Peak Pulse (10/1000µs)：20A (8/20µs)
• Power - Peak Pulse：300W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：80pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C (TJ)
• Mounting Type：Surface Mount

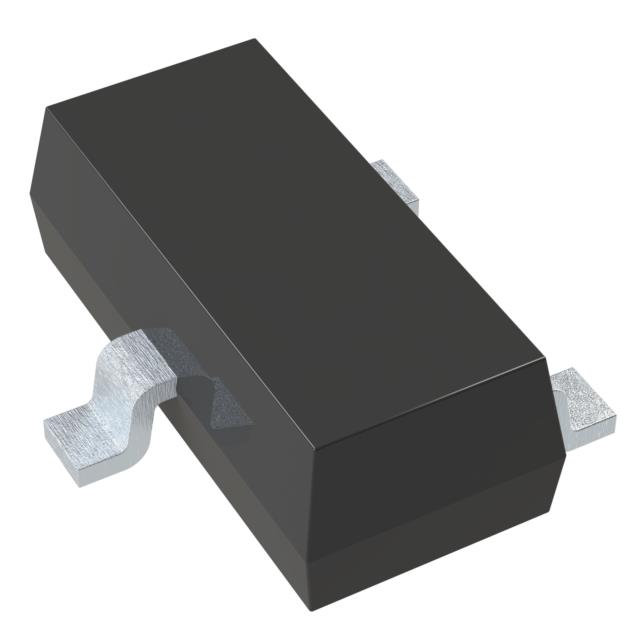

• Package / Case：TO-236-3, SC-59, SOT-23-3
• Supplier Device Package：SOT-23
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for SM05B-TP
