SM0603GCL

LED Indication - Discrete Overview

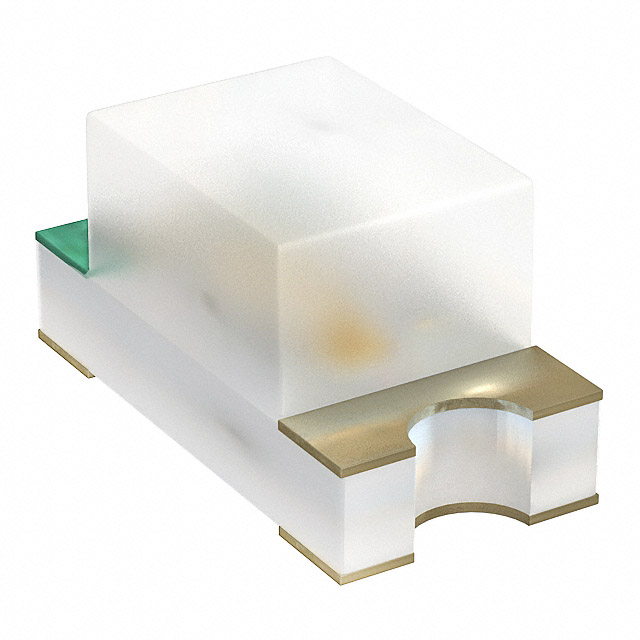

The SM0603GCL is a surface-mount single-color LED manufactured by Bivar Inc. It emits green light with a peak wavelength of 574 nm and a typical forward voltage of 1.9 V at a test current of 2 mA. The component features a rectangular lens measuring 1.00 mm x 0.80 mm with water-clear transparency. It offers a luminous intensity of 3.6 mcd and a viewing angle of 130 degrees. The device is housed in a 0603 (1608 metric) package with maximum dimensions of 1.60 mm length, 0.80 mm width, and 0.60 mm height.

LED Indication - Discrete Feature Summary

• Emits green light with a 574 nm peak wavelength
• Features a water-clear rectangular lens for visibility
• Provides a wide 130-degree viewing angle
• Designed for standard surface-mount assembly

LED Indication - Discrete Applications

• General status indication on electronic circuit boards
• Panel indicator lights for consumer devices
• Visual signaling in industrial control equipment
• Power-on indicators for portable electronics

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure correct packaging configuration, such as tape and reel or cut tape, matches production requirements. Confirm RoHS compliance status and moisture sensitivity level ratings prior to soldering processes. Check lead time availability through authorized distributors to align with manufacturing schedules. Ensure the component meets all relevant environmental regulations for the target market.

LED Indication - Discrete Selection Notes

Select this component when a compact green indicator is required for space-constrained designs. The 0603 footprint allows for high-density PCB layouts. Consider the 1.9 V forward voltage drop for power supply compatibility. The 130-degree viewing angle ensures broad visibility from various positions. Evaluate the 3.6 mcd brightness against ambient lighting conditions to guarantee adequate signal visibility.

LED Indication - Discrete Part Context

This part belongs to the SM0603 series of surface-mount LEDs from Bivar Inc. The series includes variants with different colors and lens treatments to suit diverse application needs. The SM0603GCL specifically addresses the need for green illumination in small form-factor electronics. It shares mechanical dimensions with other colors in the family but differs in optical characteristics.

LED Indication - Discrete Replacement Considerations

Direct substitutes within the same series include SM0603RCL for red and SM0603YCL for yellow. Cross-brand replacements require matching the 0603 footprint, 1.9 V forward voltage, and similar luminous intensity. Verify that alternative components maintain compatible peak wavelength and viewing angle specifications.
