SM0805UYC

LED Indication - Discrete Overview

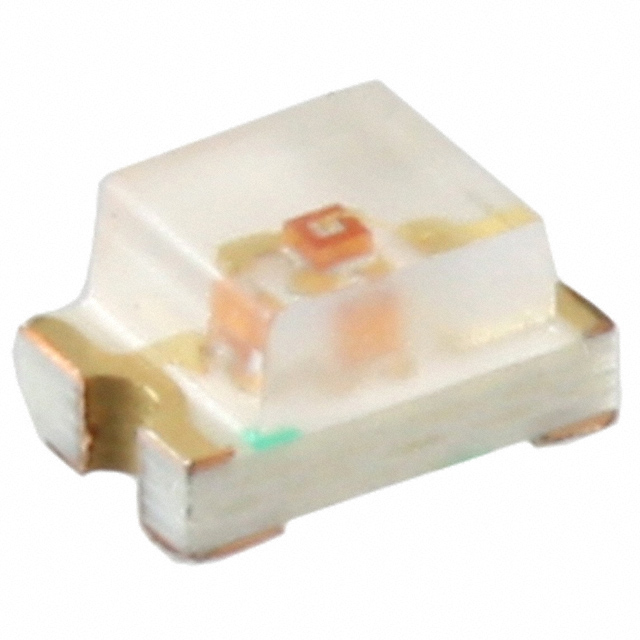

The SM0805UYC is a single-color surface-mount LED manufactured by Bivar Inc. It emits ultra-yellow light at a peak wavelength of 588 nm with a water-clear lens. The component operates within a standard 0805 (2012 metric) package, featuring a rectangular lens shape and dimensions of 1.4 mm x 1.2 mm. Electrical characteristics include a forward current rating of 20 mA and a forward voltage of 2 V, resulting in a power rating of 78 mW. The device supports operation temperatures ranging from -30 °C to +80 °C and exhibits moisture sensitivity.

LED Indication - Discrete Feature Summary

• Emits ultra-yellow light at 588 nm
• Water-clear rectangular lens design
• Standard 0805 surface-mount footprint

LED Indication - Discrete Applications

• Electronic status indicators
• Panel illumination
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for the SM0805UYC to confirm exact luminous intensity values and binning classifications prior to procurement. Ensure compliance with RoHS directives and check moisture sensitivity level requirements for storage and reflow soldering processes. Confirm availability through authorized distributors as supply chain conditions may vary.

LED Indication - Discrete Selection Notes

Select the SM0805UYC when an ultra-yellow visual indicator is required in space-constrained designs utilizing the 0805 form factor. Consider the 2 V forward voltage drop for circuit drive compatibility. Evaluate thermal management needs given the 78 mW power rating and operating temperature range up to +80 °C.

LED Indication - Discrete Part Context

This component belongs to Bivar's single-color LED portfolio, designed for surface-mount technology applications. The SM series offers industry-standard packaging options to facilitate automated assembly. The SM0805UYC specifically targets markets requiring compact, high-reliability yellow light sources for visual feedback systems.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 0805 ultra-yellow LEDs only after verifying electrical and mechanical parameter alignment.
