SM1206AC

$0.20

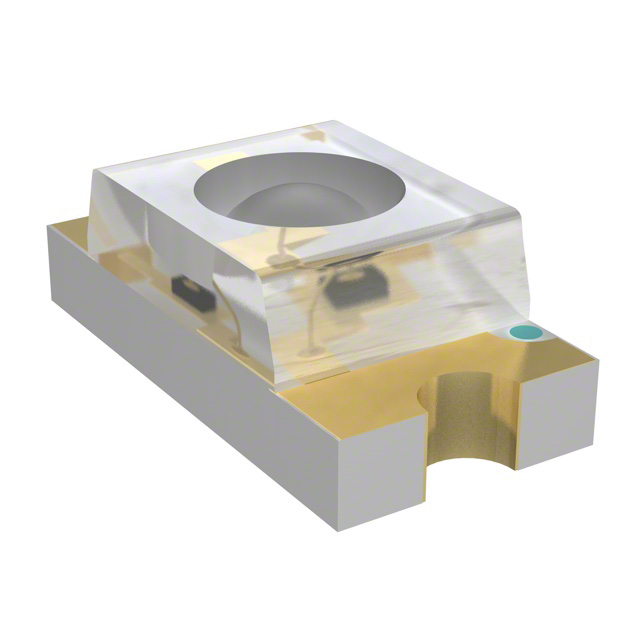

Description：LED AMBER CLEAR 1206 SMD
Series：-
Mfr：Bivar Inc.
Package：Tape & Reel (TR)

SKU:885139fe355c Category: LED Indication - Discrete Brand: Bivar Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SM1206AC is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Bivar Inc.. Its product description is LED AMBER CLEAR 1206 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SM1206AC

Description：LED AMBER CLEAR 1206 SMD
Series：-
Mfr：Bivar Inc.
Package：Tape & Reel (TR)
Color：Amber
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：6mcd
Lens Style：Rectangle with Flat Top
Lens Size：2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：607nm
Wavelength - Peak：610nm
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：1206
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SM1206AC

SM1206AC

LED Indication - Discrete Overview

The Bivar SM1206AC is a single-color surface-mount LED emitting amber light at a peak wavelength of 607 nm. It features a water-clear lens with dimensions of 2 mm by 1.6 mm and a rectangular shape. The component operates with a forward current of 20 mA and a forward voltage of 2 V, resulting in a power rating of 78 mW. It provides an optical intensity of 6 mcd and is housed in a standard 1206 (3216 metric) package suitable for SMD/SMT installation.

LED Indication - Discrete Feature Summary

Emits amber light with a 607 nm peak wavelength
Features a water-clear rectangular lens for visibility
Designed for surface-mount technology (SMD/SMT) applications

LED Indication - Discrete Applications

Indicator lights for electronic devices
Status signaling in consumer electronics
Panel illumination in control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance details and exact binning classifications for wavelength and intensity. Ensure that the ordering suffix matches the required packaging format, such as cut tape or reel, as specified in the official manufacturer documentation before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when an amber indication is required in a compact 1206 footprint. Consider the 6 mcd intensity and 2 V forward voltage drop against circuit design requirements. Verify compatibility with the target application's thermal management and mounting constraints using the provided mechanical drawings.

LED Indication - Discrete Part Context

This part belongs to Bivar’s line of low-power surface-mount LEDs. It is categorized under single-color indicators within the broader LED product family. The 1206 form factor allows for automated placement in high-volume manufacturing processes while providing sufficient visibility for status indication purposes.
