SM1210BC-SR/HG

LED Indication - Discrete Overview

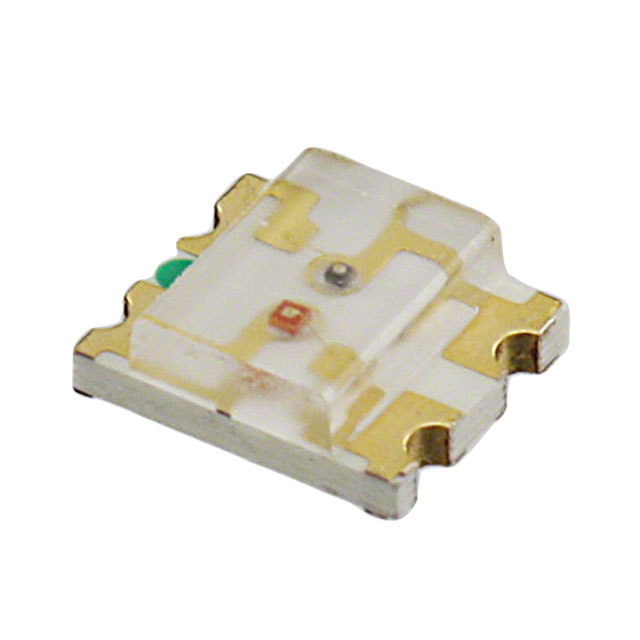

The SM1210BC-SR/HG is a surface-mount bi-color LED from Bivar Inc., housed in an industry-standard 1311 package. It integrates two chips within one component, featuring a water clear rectangular lens and a wide viewing angle of 130 degrees. The device emits super red at 640 nm and high-efficiency green at 568 nm. Electrical characteristics include a forward current of 20 mA for both colors, with typical forward voltages of 1.9 V for red and 2.0 V for green. The unit supports RoHS compliance and operates within a temperature range of -40°C to +80°C.

LED Indication - Discrete Feature Summary

• Integrates two distinct LED chips into a single compact package for space-efficient design
• Features a water clear rectangular lens to provide a wide 130-degree viewing angle
• Delivers high-efficiency red and green light output for enhanced visibility

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Visual signaling in consumer electronics devices
• Panel indicators requiring dual-color feedback

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against official Bivar documentation to ensure correct wavelength and intensity specifications. Confirm that the procurement channel sources genuine components directly from authorized distributors or the manufacturer to maintain quality standards. Check for RoHS compliance certificates if required by your manufacturing regulations. Ensure the ordering quantity matches the available packaging formats such as cut tape or reel options provided by suppliers.

LED Indication - Discrete Selection Notes

Select this component when a dual-color indicator is needed within a standard 1311 footprint. Consider the 130-degree viewing angle for applications requiring broad visibility. Evaluate the forward voltage requirements against your driving circuit capabilities. This part is suitable for designs prioritizing high efficiency and compact integration over single-color alternatives.

LED Indication - Discrete Part Context

This model belongs to Bivar's SM1210 series of miniature surface-mount LEDs. The series is designed for applications requiring reliable visual indication in tight spaces. The SM1210BC variant specifically addresses needs for bi-color functionality without increasing board area. It represents a standard solution for multi-state status reporting in modern electronics.

LED Indication - Discrete Replacement Considerations

SM1210BC

LED Indication - Discrete FAQ

What is the viewing angle of the SM1210BC-SR/HG?

The component features a wide viewing angle of 130 degrees.

Does this LED support RoHS compliance?

Yes, the SM1210BC-SR/HG is RoHS compliant.
