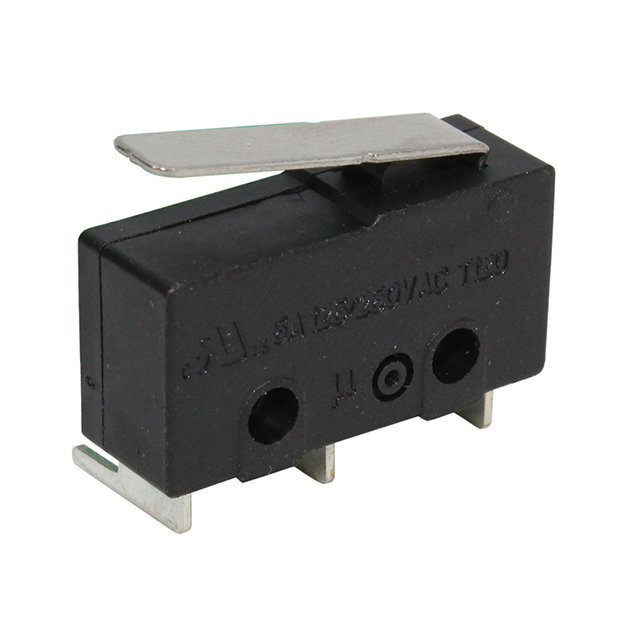

SM3AQF0804L01

SM3AQF0804L01 is listed in the Limit Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH LIMIT SPST-NO 5A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for SM3AQF0804L01

• Description：SWITCH LIMIT SPST-NO 5A 125V
• Series：SM3
• Mfr：CIT Relay and Switch
• Package：Bag
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：5A (AC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Through Hole, Right Angle
• Termination Style：PC Pin
• Ingress Protection：-
• Features：-
• Operating Force：20gf
• Release Force：10gf
• Operating Position：0.413" (10.5mm)
• Pretravel：0.157" (4.0mm)
• Differential Travel：0.035" (0.9mm)
• Overtravel：0.031" (0.8mm)
• Operating Temperature：-40°C ~ 120°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for SM3AQF0804L01
