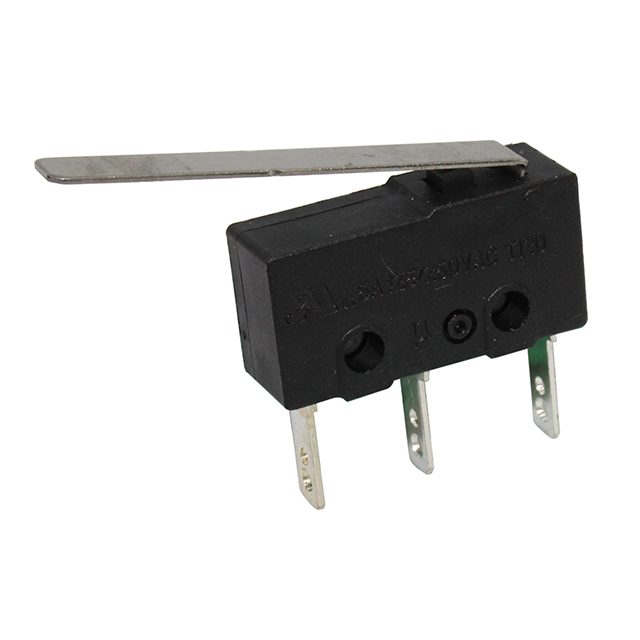

SM3CQF0801L04

SM3CQF0801L04 is listed in the Limit Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH LIMIT SPDT 5A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for SM3CQF0801L04

• Description：SWITCH LIMIT SPDT 5A 125V
• Series：SM3
• Mfr：CIT Relay and Switch
• Package：Bag
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.110" (2.8mm)
• Ingress Protection：-
• Features：-
• Operating Force：12gf
• Release Force：5.000gf
• Operating Position：0.413" (10.5mm)
• Pretravel：0.256" (6.5mm)
• Differential Travel：0.047" (1.2mm)
• Overtravel：0.059" (1.5mm)
• Operating Temperature：-40°C ~ 120°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for SM3CQF0801L04
