SMAJ5933AE3/TR13

Single Zener Diodes Overview

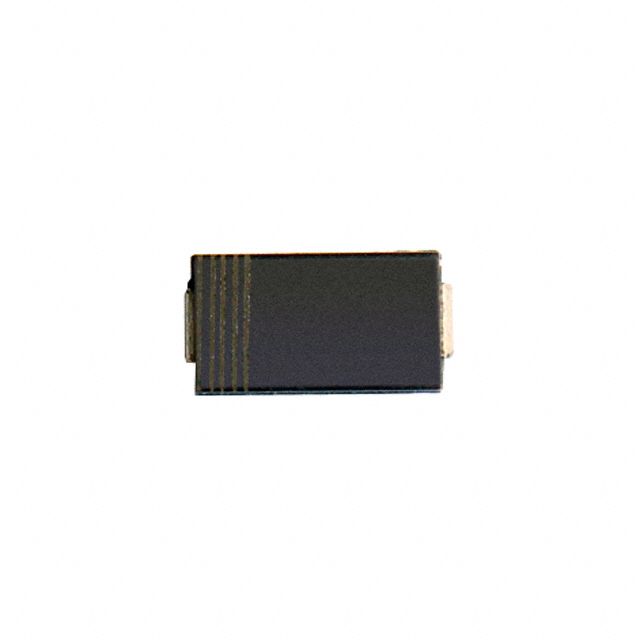

The SMAJ5933AE3/TR13 is a single Zener diode manufactured by Microchip Technology, designed for surface-mount applications. It utilizes the DO-214AC (SMA) package and operates with a nominal voltage of 22 V and a power dissipation rating of 3 W. The device features a tolerance of ±10% and is RoHS compliant. It is supplied in reel packaging, suitable for automated assembly processes.

Single Zener Diodes Feature Summary

• Provides stable voltage regulation in surface-mount configurations
• Constructed within a compact DO-214AC (SMA) package
• Compliant with RoHS environmental standards

Single Zener Diodes Applications

• Discrete semiconductor voltage regulation circuits
• General-purpose electronic component assemblies

Single Zener Diodes Procurement Notes

Verify the specific datasheet for the SMAJ5933AE3/TR13 to confirm exact electrical characteristics and mechanical dimensions. Ensure compatibility with existing PCB footprints designated for the DO-214AC package. Cross-reference manufacturer documentation for any recent product change notifications or compliance updates before finalizing procurement decisions.

Single Zener Diodes Selection Notes

Select this component when a 22 V Zener diode with 3 W power handling is required in an SMA package. Consider the ±10% tolerance for voltage regulation precision. Verify that the reel packaging format aligns with the manufacturing equipment's tape-and-reel specifications.

Single Zener Diodes Part Context

This part belongs to Microchip Technology's discrete diode portfolio, specifically categorized under single Zener diodes. The SMAJ5933 series typically encompasses various voltage ratings within the same physical footprint, allowing for design flexibility while maintaining consistent board layout requirements across different voltage levels.

Single Zener Diodes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Microchip documentation or authorized distributors for verified cross-reference data.
