SMB15F26A

SMB15F26A is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is TVS DIODE 26VWM 53.5VC SMBFLAT. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMB15F26A

• Description：TVS DIODE 26VWM 53.5VC SMBFLAT
• Series：SMB15F
• Mfr：STMicroelectronics
• Package：Tape & Reel (TR)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：26V (Max)
• Voltage - Breakdown (Min)：28.9V
• Voltage - Clamping (Max) @ Ipp：53.5V
• Current - Peak Pulse (10/1000µs)：187A (8/20µs)
• Power - Peak Pulse：1500W (1.5kW)
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 175°C (TJ)
• Mounting Type：Surface Mount

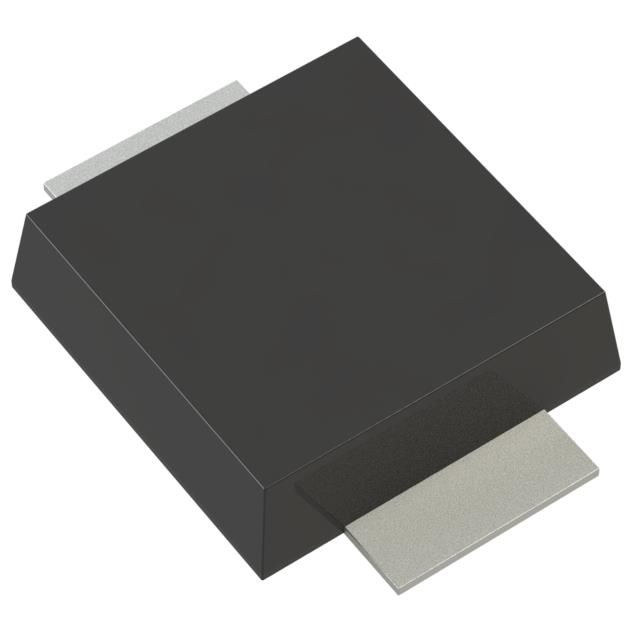

• Package / Case：DO-221AA, SMB Flat Leads
• Supplier Device Package：SMBflat
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for SMB15F26A
