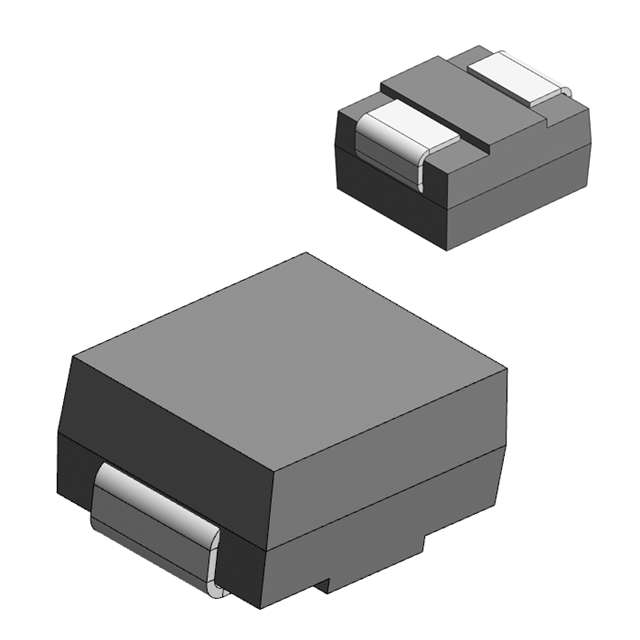

Tvs Diodes SMBJ45AH product image

SMBJ45AH

$0.07
  • Description：TVS DIODE 45VWM 72.7VC DO214AA
  • Series：SMBJxxH
  • Mfr：Eaton - Electronics Division
  • Package：Tape & Reel (TR)

SKU:6d37f6424938 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

SMBJ45AH is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is TVS DIODE 45VWM 72.7VC DO214AA. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMBJ45AH

  • Description：TVS DIODE 45VWM 72.7VC DO214AA
  • Series：SMBJxxH
  • Mfr：Eaton - Electronics Division
  • Package：Tape & Reel (TR)
  • Type：Zener
  • Bidirectional Channels：-
  • Voltage - Reverse Standoff (Typ)：45V
  • Voltage - Breakdown (Min)：50V
  • Voltage - Clamping (Max) @ Ipp：72.7V
  • Current - Peak Pulse (10/1000µs)：8.3A
  • Power - Peak Pulse：600W
  • Power Line Protection：No
  • Applications：Telecom
  • Capacitance @ Frequency：-
  • Operating Temperature：-55°C ~ 150°C (TJ)
  • Mounting Type：Surface Mount
  • Package / Case：DO-214AA, SMB
  • Supplier Device Package：DO-214AA (SMBJ)
  • Unidirectional Channels：1
  • Grade：Automotive
  • Qualification：AEC-Q101

Tvs Diodes datasheet and documents for SMBJ45AH

SMBJ45AH

Explore related parts through Transient Voltage Suppressors (TVS), Circuit Protection, all product categories, ChipApex homepage.
