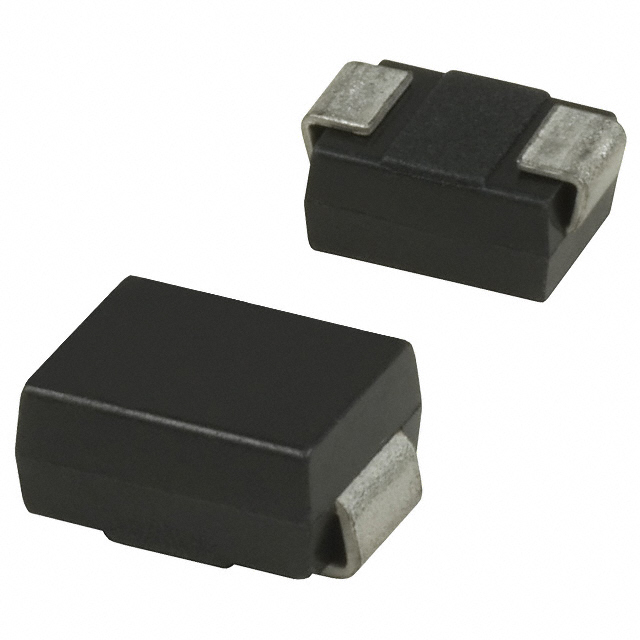

SMBJ70A

SMBJ70A is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is TVS DIODE 70VWM 113VC DO214AA. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMBJ70A

• Description：TVS DIODE 70VWM 113VC DO214AA
• Series：SMBJ
• Mfr：Taiwan Semiconductor Corporation
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：-
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：70V
• Voltage - Breakdown (Min)：77.8V
• Voltage - Clamping (Max) @ Ipp：113V
• Current - Peak Pulse (10/1000µs)：5.3A
• Power - Peak Pulse：600W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：DO-214AA, SMB
• Supplier Device Package：DO-214AA (SMB)
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for SMBJ70A
