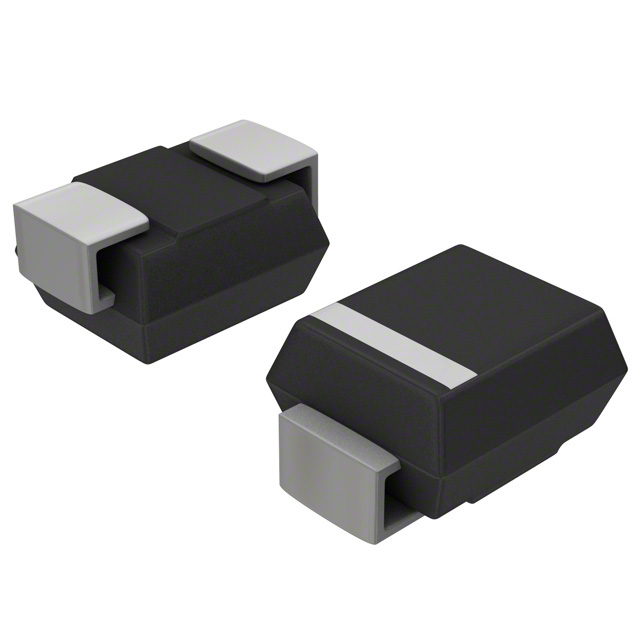

Tvs Diodes SMBJ78A product image

SMBJ78A

$0.05
  • Description：TVS DIODE 78VWM 126VC DO214AA
  • Series：-
  • Mfr：SMC Diode Solutions
  • Package：Tape & Reel (TR)

SKU:e9e2c3866a60 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

SMBJ78A is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists SMC Diode Solutions. Its product description is TVS DIODE 78VWM 126VC DO214AA. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMBJ78A

  • Description：TVS DIODE 78VWM 126VC DO214AA
  • Series：-
  • Mfr：SMC Diode Solutions
  • Package：Tape & Reel (TR)
  • Type：Zener
  • Bidirectional Channels：-
  • Voltage - Reverse Standoff (Typ)：78V
  • Voltage - Breakdown (Min)：86.7V
  • Voltage - Clamping (Max) @ Ipp：126V
  • Current - Peak Pulse (10/1000µs)：4.7A
  • Power - Peak Pulse：600W
  • Power Line Protection：No
  • Applications：General Purpose
  • Capacitance @ Frequency：-
  • Operating Temperature：-55°C ~ 150°C (TJ)
  • Mounting Type：Surface Mount
  • Package / Case：DO-214AA, SMB
  • Supplier Device Package：DO-214AA (SMB)
  • Unidirectional Channels：1
  • Grade：-
  • Qualification：-

Tvs Diodes datasheet and documents for SMBJ78A

SMBJ78A
