SMC-1-10-1-GT

Headers, Receptacles, Female Sockets Overview

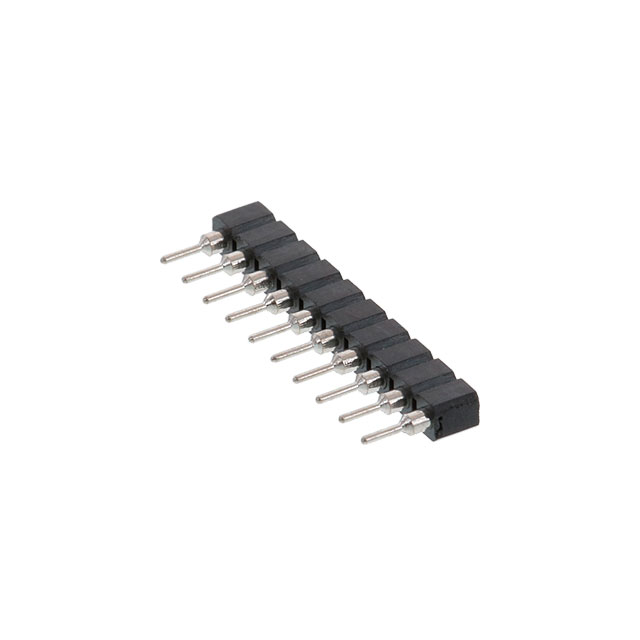

The Adam Tech SMC-1-10-1-GT is a rectangular connector component classified as a machine pin socket. It features a single row configuration with ten positions and a pitch of 2.54 mm. The housing is designed for panel mount installation and utilizes a solder termination method for secure attachment to printed circuit boards. This receptacle type provides reliable electrical connectivity within the SMC series family.

Headers, Receptacles, Female Sockets Feature Summary

• Single row female socket design for board-to-board or cable connections
• 2.54 mm pitch spacing ensures standard compatibility with associated headers
• Solder termination facilitates permanent mounting on PCB substrates
• Panel mount style housing supports stable mechanical integration

Headers, Receptacles, Female Sockets Applications

• Industrial control system interconnects
• Consumer electronics assembly
• General purpose circuit board wiring
• Automotive electronic modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix GT against the official Adam Tech datasheet to confirm material composition and plating specifications. Ensure the required contact count matches the ten-position configuration. Cross-reference the package type and termination style with the target application requirements before finalizing the purchase order.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a ten-position female socket with 2.54 mm pitch is required. Confirm that the solder termination method aligns with the manufacturing process. Verify that the panel mount housing style meets the mechanical constraints of the enclosure design. Check compatibility with corresponding male header parts from the same series.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Adam Tech SMC series of rectangular connectors. The series offers various position counts and configurations for different connectivity needs. The SMC-1-10-1-GT specifically addresses applications requiring a ten-contact female interface with standard spacing.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official Adam Tech documentation for direct substitute part numbers. Verify that any alternative maintains the identical 2.54 mm pitch, ten-position count, and solder termination characteristics to ensure functional equivalence.
