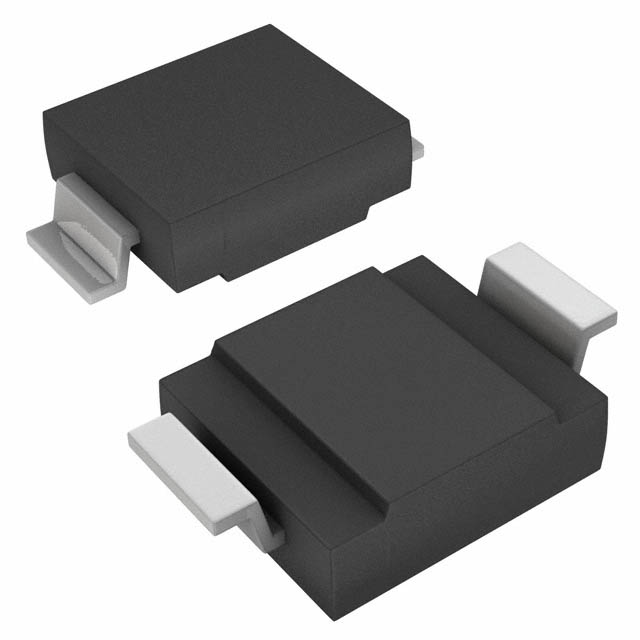

Tvs Diodes SMCG75-E3/9AT product image

SMCG75-E3/9AT

Description：TVS DIODE 75VWM 134VC DO214AB
Series：TransZorb®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR)

SKU:6a15bf2609f2 Category: TVS Diodes Brand: Vishay General Semiconductor - Diodes Division

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMCG75-E3/9AT is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is TVS DIODE 75VWM 134VC DO214AB. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMCG75-E3/9AT

Description：TVS DIODE 75VWM 134VC DO214AB
Series：TransZorb®
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR)
Type：Zener
Bidirectional Channels：-
Voltage - Reverse Standoff (Typ)：75V
Voltage - Breakdown (Min)：83.3V
Voltage - Clamping (Max) @ Ipp：134V
Current - Peak Pulse (10/1000µs)：11.2A
Power - Peak Pulse：1500W (1.5kW)
Power Line Protection：No
Applications：General Purpose
Capacitance @ Frequency：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：DO-215AB, SMC Gull Wing
Supplier Device Package：DO-214AB (SMCG)
Unidirectional Channels：1
Grade：-
Qualification：-

Tvs Diodes datasheet and documents for SMCG75-E3/9AT
