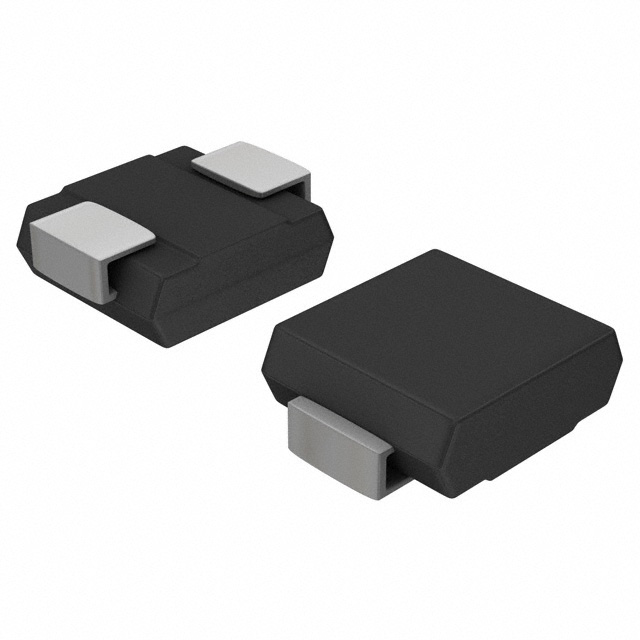

Tvs Diodes SMCJ58AH product image

SMCJ58AH

$0.20

Description：TVS DIODE 58VWM 93.6VC DO214AB
Series：SMCJ
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR)

SKU:8505b8252026 Category: TVS Diodes Brand: Taiwan Semiconductor Corporation

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMCJ58AH is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Taiwan Semiconductor Corporation. Its product description is TVS DIODE 58VWM 93.6VC DO214AB. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMCJ58AH

Description：TVS DIODE 58VWM 93.6VC DO214AB
Series：SMCJ
Mfr：Taiwan Semiconductor Corporation
Package：Tape & Reel (TR)
Type：Zener
Bidirectional Channels：-
Voltage - Reverse Standoff (Typ)：58V
Voltage - Breakdown (Min)：64.4V
Voltage - Clamping (Max) @ Ipp：93.6V
Current - Peak Pulse (10/1000µs)：16A
Power - Peak Pulse：1500W (1.5kW)
Power Line Protection：No
Applications：Telecom
Capacitance @ Frequency：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：DO-214AB, SMC
Supplier Device Package：DO-214AB (SMC)
Unidirectional Channels：1
Grade：Automotive
Qualification：AEC-Q101
