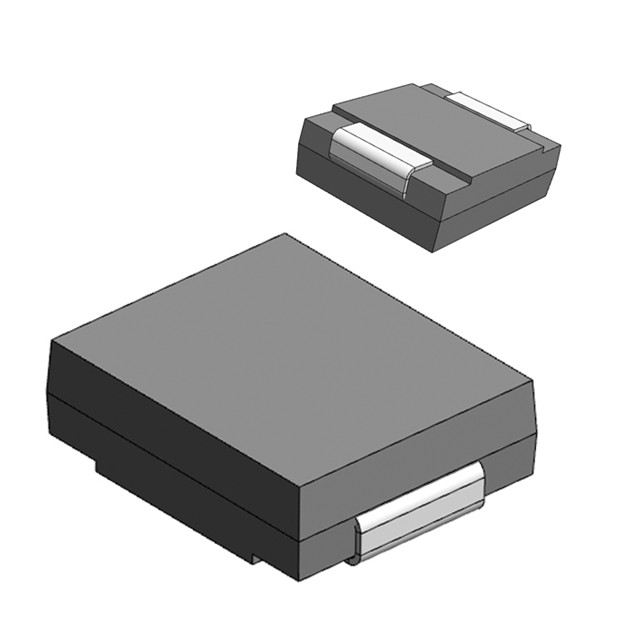

Tvs Diodes SMDJ20AH product image

SMDJ20AH

$0.96
  • Description：TVS DIODE 20VWM 32.4VC SMC
  • Series：SMDJxxH
  • Mfr：Eaton - Electronics Division
  • Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a04a94ad3cae Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

SMDJ20AH is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is TVS DIODE 20VWM 32.4VC SMC. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMDJ20AH

  • Description：TVS DIODE 20VWM 32.4VC SMC
  • Series：SMDJxxH
  • Mfr：Eaton - Electronics Division
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • Type：Zener
  • Bidirectional Channels：-
  • Voltage - Reverse Standoff (Typ)：20V
  • Voltage - Breakdown (Min)：22.2V
  • Voltage - Clamping (Max) @ Ipp：32.4V
  • Current - Peak Pulse (10/1000µs)：92.6A
  • Power - Peak Pulse：3000W (3kW)
  • Power Line Protection：No
  • Applications：Telecom
  • Capacitance @ Frequency：-
  • Operating Temperature：-55°C ~ 150°C (TJ)
  • Mounting Type：Surface Mount
  • Package / Case：DO-214AB, SMC
  • Supplier Device Package：SMC
  • Unidirectional Channels：1
  • Grade：Automotive
  • Qualification：AEC-Q101

Tvs Diodes datasheet and documents for SMDJ20AH

SMDJ20AH
