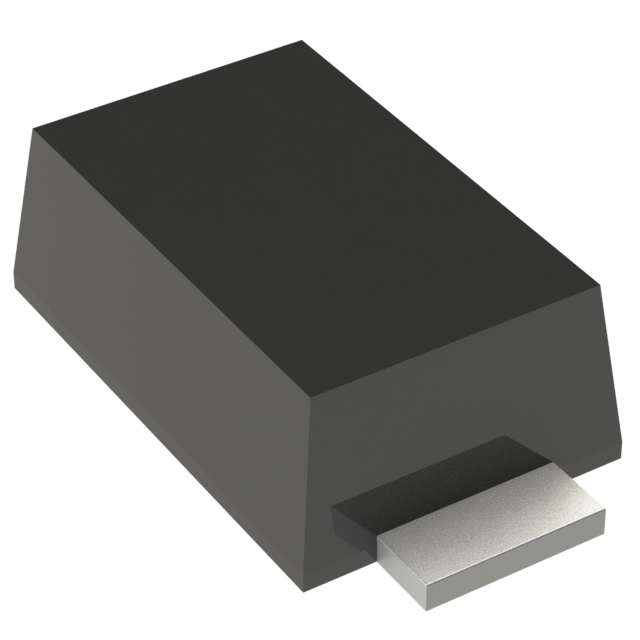

Tvs Diodes SMF8.5A_R1_00001 product image

SMF8.5A_R1_00001

$0.27

Description：TVS DIODE 8.5VWM 14.4V SOD123FL
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0d59b15272aa Category: TVS Diodes Brand: Panjit International Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMF8.5A_R1_00001 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Panjit International Inc.. Its product description is TVS DIODE 8.5VWM 14.4V SOD123FL. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMF8.5A_R1_00001

Description：TVS DIODE 8.5VWM 14.4V SOD123FL
Series：-
Mfr：Panjit International Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Zener
Bidirectional Channels：-
Voltage - Reverse Standoff (Typ)：8.5V
Voltage - Breakdown (Min)：9.4V
Voltage - Clamping (Max) @ Ipp：14.4V
Current - Peak Pulse (10/1000µs)：13.9A
Power - Peak Pulse：200W
Power Line Protection：No
Applications：General Purpose
Capacitance @ Frequency：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：SOD-123F
Supplier Device Package：SOD-123FL
Unidirectional Channels：1
Grade：-
Qualification：-

Tvs Diodes datasheet and documents for SMF8.5A_R1_00001
