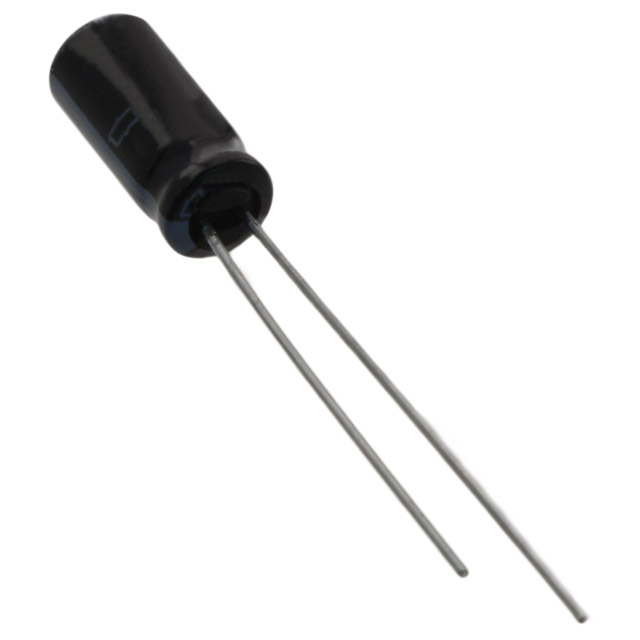

Aluminum Electrolytic Capacitors SMG100VB1R0M5X11LL product image

SMG100VB1R0M5X11LL

Description：CAP ALUM 1UF 20% 100V RADIAL TH
Series：SMG
Mfr：Chemi-Con
Package：Bulk

SKU:fe873b6743c6 Category: Aluminum Electrolytic Capacitors Brand: Chemi-Con

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMG100VB1R0M5X11LL is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 1UF 20% 100V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for SMG100VB1R0M5X11LL

Description：CAP ALUM 1UF 20% 100V RADIAL TH
Series：SMG
Mfr：Chemi-Con
Package：Bulk
Capacitance：1 µF
Tolerance：±20%
Voltage - Rated：100 V
ESR (Equivalent Series Resistance)：132.6Ohm @ 120Hz
Lifetime @ Temp.：2000 Hrs @ 85°C
Operating Temperature：-40°C ~ 85°C
Polarization：Polar
Ratings：-
Applications：General Purpose
Ripple Current @ Low Frequency：21 mA @ 120 Hz
Ripple Current @ High Frequency：52.5 mA @ 100 kHz
Lead Spacing：0.079" (2.00mm)
Size / Dimension：0.197" Dia (5.00mm)
Height - Seated (Max)：0.433" (11.00mm)
Surface Mount Land Size：-
Mounting Type：Through Hole
Package / Case：Radial, Can

Aluminum Electrolytic Capacitors datasheet and documents for SMG100VB1R0M5X11LL
