SMG641-7C7C2C-B-12

Antennas RF Overview

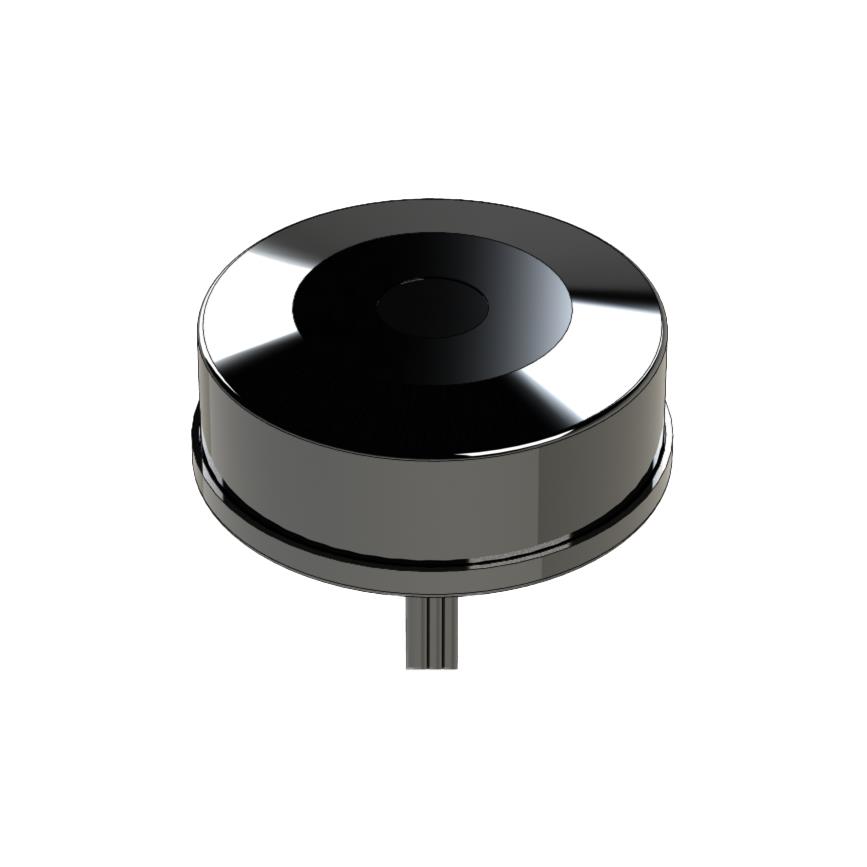

The SMG641-7C7C2C-B-12 is a multi-band dome antenna designed for surface mount installation. It integrates six distinct RF channels to support simultaneous wireless communications. The configuration includes four dedicated ports for 5G Sub-6 cellular networks, one port for WiFi 6e/7 operation, and one port for GNSS positioning. This architecture enables comprehensive MIMO coverage for cellular data while maintaining separate connectivity for high-speed local area networking and satellite navigation.

Antennas RF Feature Summary

• Integrates multiple communication protocols into a single compact dome form factor
• Provides dedicated MIMO support for cellular network connectivity
• Includes specific channel allocation for WiFi and GNSS applications

Antennas RF Applications

• Fleet management systems requiring integrated tracking and connectivity
• Smart city infrastructure nodes needing multi-service communication
• Public transit vehicles with combined cellular, WiFi, and GPS needs
• Utility and industrial IoT gateways supporting diverse wireless standards

Antennas RF Procurement Notes

Verify the specific cable length and connector type requirements against the system interface before ordering. Confirm that the surface mount footprint matches the equipment chassis design. Ensure the host device supports the required MIMO configurations for the four cellular ports. Check compatibility with the intended WiFi 6e/7 standards and GNSS frequency bands.

Antennas RF Selection Notes

Select this model when a unified solution for cellular, WiFi, and navigation is required in space-constrained environments. It is suitable for applications demanding high reliability across multiple wireless technologies without external mounting structures. Consider alternative models if only single-band functionality or different mounting styles are needed.

Antennas RF Part Context

Mobile Mark Antenna Solutions specializes in reliable communication antennas for mobile and fixed sites. Their portfolio covers frequencies from 30 MHz to 7.2 GHz, including 4G LTE, 5G Sub-6, CBRS, WiFi, ISM, LoRaWAN, RFID, VHF, UHF, and GNSS. The company serves sectors such as fleet management, smart cities, utilities, and public transit.

Antennas RF Replacement Considerations

The SMG641-7C7C2C-B-12 may be functionally equivalent to part number 3893-SM540-7C2C-B-12 based on available alias information. Verify mechanical dimensions and electrical specifications before substitution.
