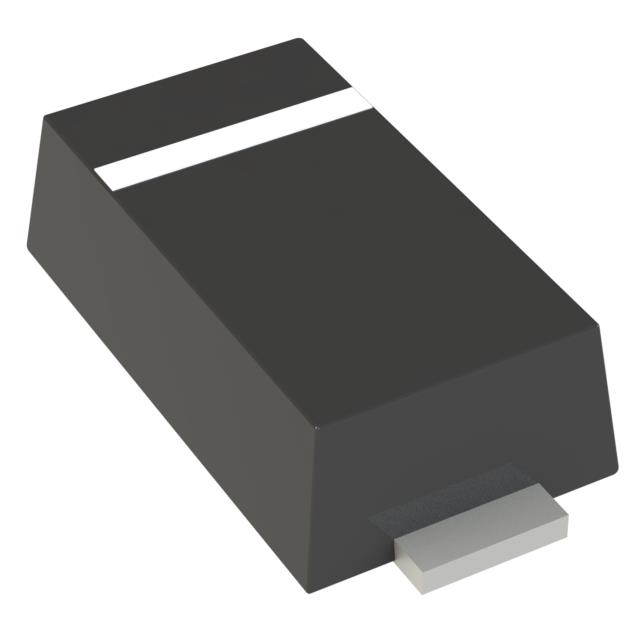

Tvs Diodes SMH24A-TP product image

SMH24A-TP

$0.08

Description：TVS DIODE 24VWM 38.9VC SOD123HL
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR)

SKU:e41f8774d4e3 Category: TVS Diodes Brand: MCC (Micro Commercial Components)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SMH24A-TP is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is TVS DIODE 24VWM 38.9VC SOD123HL. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for SMH24A-TP

Description：TVS DIODE 24VWM 38.9VC SOD123HL
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tape & Reel (TR)
Type：Zener
Bidirectional Channels：-
Voltage - Reverse Standoff (Typ)：24V
Voltage - Breakdown (Min)：26.7V
Voltage - Clamping (Max) @ Ipp：38.9V
Current - Peak Pulse (10/1000µs)：5.14A
Power - Peak Pulse：200W
Power Line Protection：No
Applications：General Purpose
Capacitance @ Frequency：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：SOD-123H
Supplier Device Package：SOD-123HL
Unidirectional Channels：1
Grade：-
Qualification：-

Tvs Diodes datasheet and documents for SMH24A-TP
