SML-DSP1210SIC-TR

LED Indication - Discrete Overview

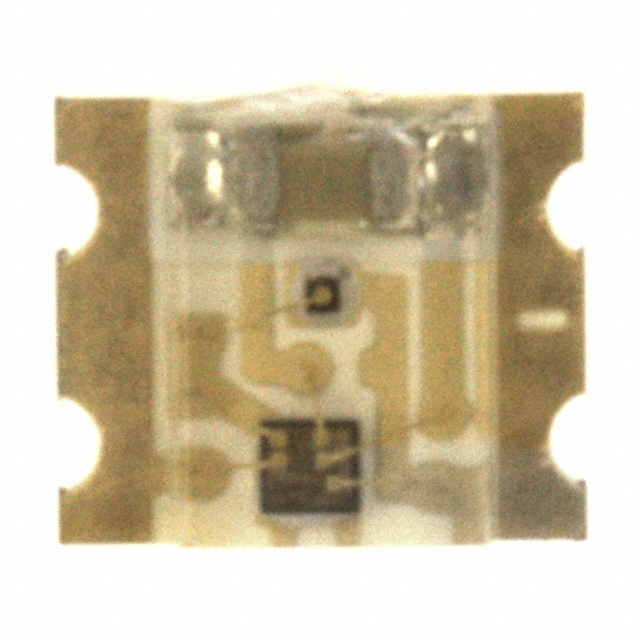

The SML-DSP1210SIC-TR is a surface-mount LED indicator manufactured by Lumex Opto/Components Inc. It features a red lens with clear transparency and emits light at a peak wavelength of 636nm. The component operates with a typical forward voltage of 2V at a test current of 20mA. Housed in a 1210 (3225 Metric) package, it measures 3.20mm in length, 2.70mm in width, and has a maximum height of 1.10mm. The device provides an intensity of 60mcd with a viewing angle of 140 degrees.

LED Indication - Discrete Feature Summary

• Surface-mount configuration for automated assembly
• Clear lens design for standard visibility
• RoHS3 compliant construction

LED Indication - Discrete Applications

• Electronic status indication
• Panel mount indicators
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number SML-DSP1210SIC-TR against official Lumex documentation to confirm specifications. Ensure compatibility with RoHS3 standards and check moisture sensitivity level requirements during storage and handling. Confirm package dimensions match the target PCB footprint before procurement.

LED Indication - Discrete Selection Notes

Select this component when a red surface-mount indicator is required for space-constrained designs. The 1210 form factor suits applications needing moderate brightness with a wide viewing angle. Consider the 2V forward voltage drop for circuit power budgeting and thermal management in dense layouts.

LED Indication - Discrete Part Context

This part belongs to the Lumex SML series of discrete LED indicators. It utilizes standard surface-mount technology for reliable integration into printed circuit boards. The product line emphasizes custom optoelectronic solutions for industrial and consumer markets.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
