SML-LX0303SIUPGUSB

LED Indication - Discrete Overview

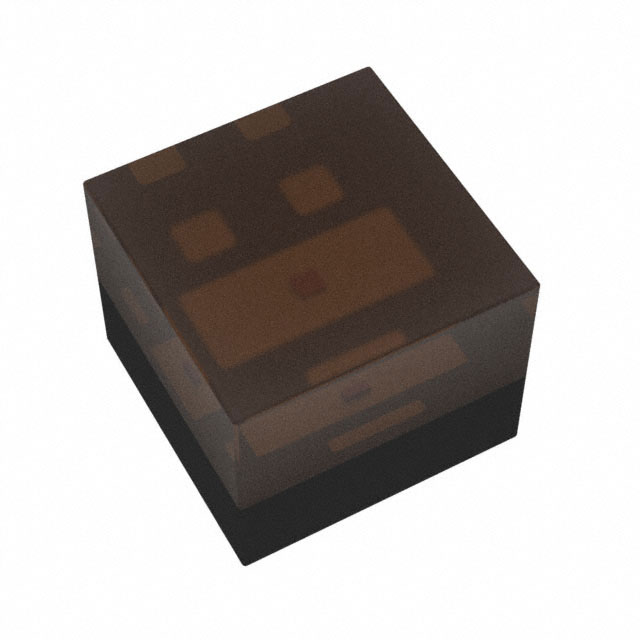

The SML-LX0303SIUPGUSB is a multi-color RGB LED in a 0.8x0.8mm surface-mount package with a height of 0.65 mm. It features clear colorless lenses and operates within a temperature range of -40 C to +85 C. The component emits red, green, and blue light at peak wavelengths of 625 nm, 525 nm, and 465 nm respectively. Forward currents are rated at 3 mA for red and 5 mA for green and blue, with corresponding forward voltages of 2 V, 2.9 V, and 2.9 V. Optical intensities reach 12 mcd, 61 mcd, and 9 mcd, while power ratings are 24 mW, 31 mW, and 31 mW. Viewing angles are 120 degrees across all channels.

LED Indication - Discrete Feature Summary

• Integrates three distinct primary colors into a single compact surface-mount device
• Provides wide viewing angles for uniform illumination distribution
• Utilizes clear lens technology for precise spectral output

LED Indication - Discrete Applications

• Status indication on high-density circuit boards
• Backlighting for small electronic displays
• Decorative lighting in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required lens transparency and emission characteristics. Confirm that the selected variant matches the intended application's thermal and electrical constraints. Check current availability status as this part may be discontinued or subject to supply limitations. Ensure storage conditions account for moisture sensitivity levels before reflow soldering processes.

LED Indication - Discrete Selection Notes

Select this component when space constraints require an RGB solution in a minimal footprint. Evaluate the forward voltage requirements against available drive circuits to ensure proper biasing. Consider the optical intensity specifications to determine if additional amplification or diffusers are necessary for visibility. Verify that the operating temperature range aligns with the environmental conditions of the final assembly.

LED Indication - Discrete Part Context

This RGB LED belongs to Lumex's series of multi-color surface-mount indicators designed for applications requiring full-color mixing capabilities. The 0303 package size allows for placement in densely populated areas where larger discrete LEDs cannot fit. It serves as a versatile signaling element for various electronic devices needing visual feedback through color changes.

LED Indication - Discrete Replacement Considerations

SML-LX0303SIUOGUSB
