SML-LX1206GW-TR

LED Indication - Discrete Overview

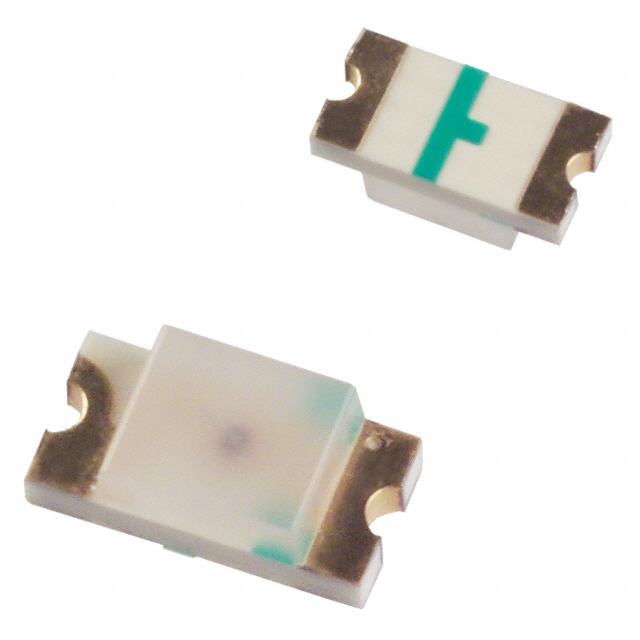

The SML-LX1206GW-TR is a single-color green light-emitting diode manufactured by Lumex Opto/Components Inc. It utilizes a surface-mount technology (SMD) package with dimensions of 3.2 mm in length, 1.6 mm in width, and a maximum height of 1.10 mm. The component emits light at a peak wavelength of 565 nm. Key electrical parameters include a forward voltage of 2.2 V and a test current of 20 mA. The optical intensity is rated at 40 mcd. The device features a rectangular lens with a milky white diffused finish and water-clear transparency characteristics.

LED Indication - Discrete Feature Summary

• Surface-mount construction designed for automated pick-and-place assembly processes
• Diffused milky white lens geometry providing wide viewing angle illumination
• RoHS compliant manufacturing ensuring environmental safety standards

LED Indication - Discrete Applications

• General indicator lighting on electronic circuit boards
• Status indication for power supply units
• Visual signaling in consumer appliance control panels

LED Indication - Discrete Procurement Notes

Verify the specific datasheet revision to confirm mechanical tolerances and thermal resistance values. Ensure that the ordering suffix matches the required tape and reel configuration for automated assembly lines. Cross-reference the manufacturer part number against distributor catalogs to confirm current availability status and lead times prior to finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator with diffused output is required for 1206 footprint constraints. Consider the 2.2 V forward voltage drop when designing series resistor networks or constant current driver circuits. Evaluate the 40 mcd luminous intensity against visibility requirements for the intended ambient lighting conditions.

LED Indication - Discrete Part Context

This component belongs to the Lumex SML-LX1206 series of surface-mount LEDs. The series offers various color options within the standardized 1206 metric package size. This specific variant provides green emission characteristics suitable for general-purpose visual feedback applications in compact electronic devices.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
